2011-2014 Dodge Challenger 5.7L/3.6L/6.4L | Hydraulic Power Steering Rack & Pinion Assembly | OE#4584573AF/223082 - PHILTOP

2011-2014 Dodge Challenger 5.7L/3.6L/6.4L | Hydraulic Power Steering Rack & Pinion Assembly | OE#4584573AF/223082 - PHILTOP

Hydraulic Power

Effortless Steering

Leak-Tested

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
55ISSGE1027US

Specifications

Brand
PHILTOP
Steering Type
Hydraulic Power
Pressure Port Thread Size
M18 X 1.5
Return Port Thread Size
M16 X 1.5
Input Shaft Diameter
0.75 in
Input Shaft Length
2.44 in
Rack Length
50.25 in
Thread Length
2.26 in
Material
Aluminum / Iron
Items Included
1x Rack and Pinion - 223082
Warranty Period
2-Year
OE Number
4584573AF
Part Number
223082,4584573AE

Highlights

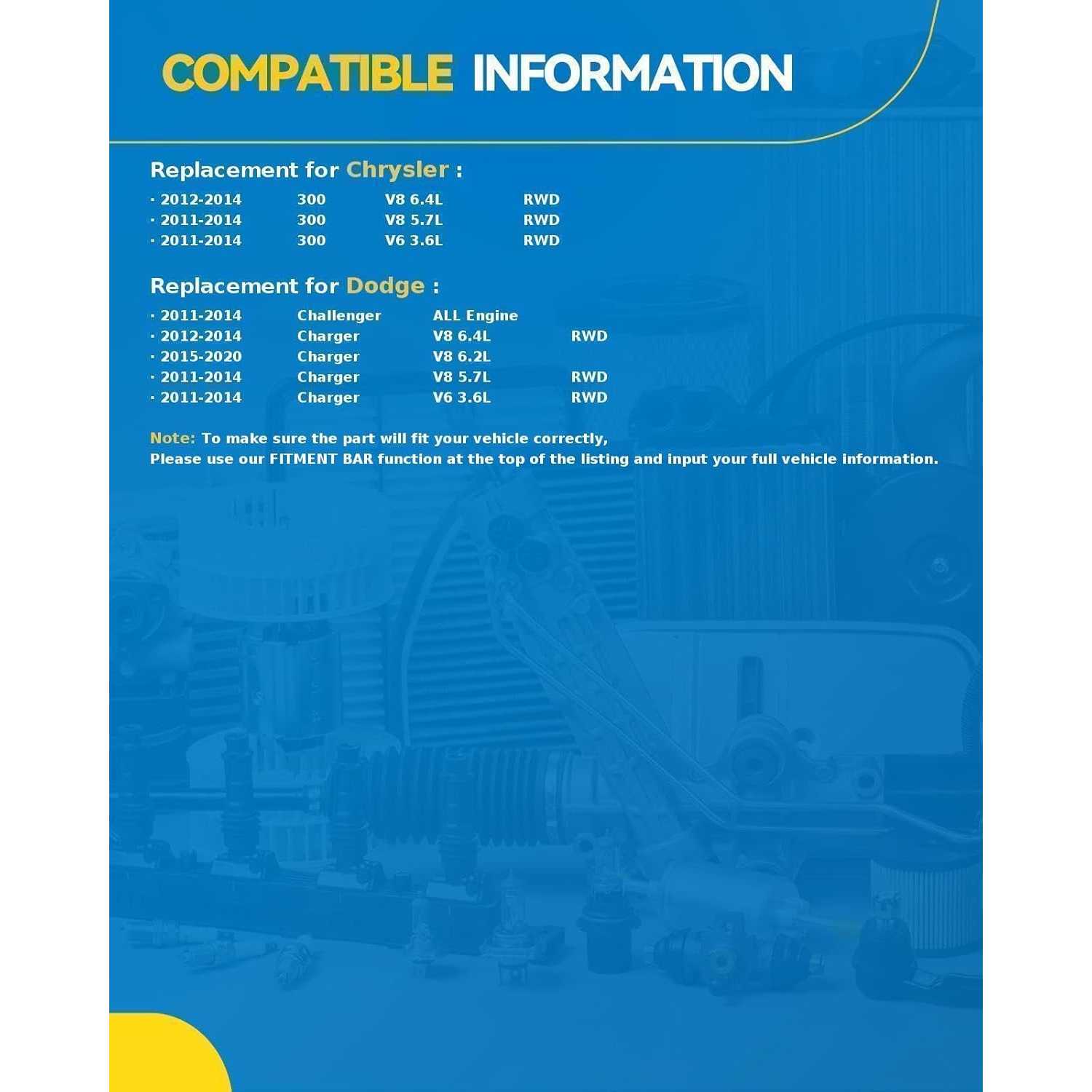

  • [VEHICLE FITMENT]: Steering Rack and Pinion Compatible with Chrysler 300 2011-2014 3.6L RWD, Chrysler 300 2011-2014 5.7L RWD, Chrysler 300 2012-2014 6.4L RWD, Challenger 2011-2014 All Models, Charger 2011-2014 3.6L RWD, Charger 2011-2014 5.7L RWD, Charger 2012-2014 6.4L RWD, Charger 2015-2020 6.2L.
  • [OE REPLACE NUMBER]: 22-3082, 223082, 4584568AF, 4584569AE, 4584571AB, 4584571AD, 4584573AB, 4584573AC, 4584573AD, 4584573AE, 4584573AF.
  • [SPECIFICATIONS]: Type - 223082 Rack and Pinion Steering Assembly with Includes Inner Tie Rods;①Rack Length: 50.16 Inch; ②Thread Length: 2.25 Inch; ③Input Shaft Length: 2.43 Inch; ④Input Shaft Diameter: 0.74 Inch; ⑤Pressure Port Thread Size: M18 x 1.5; ⑥Return Port Thread Size: M16 x 1.5;

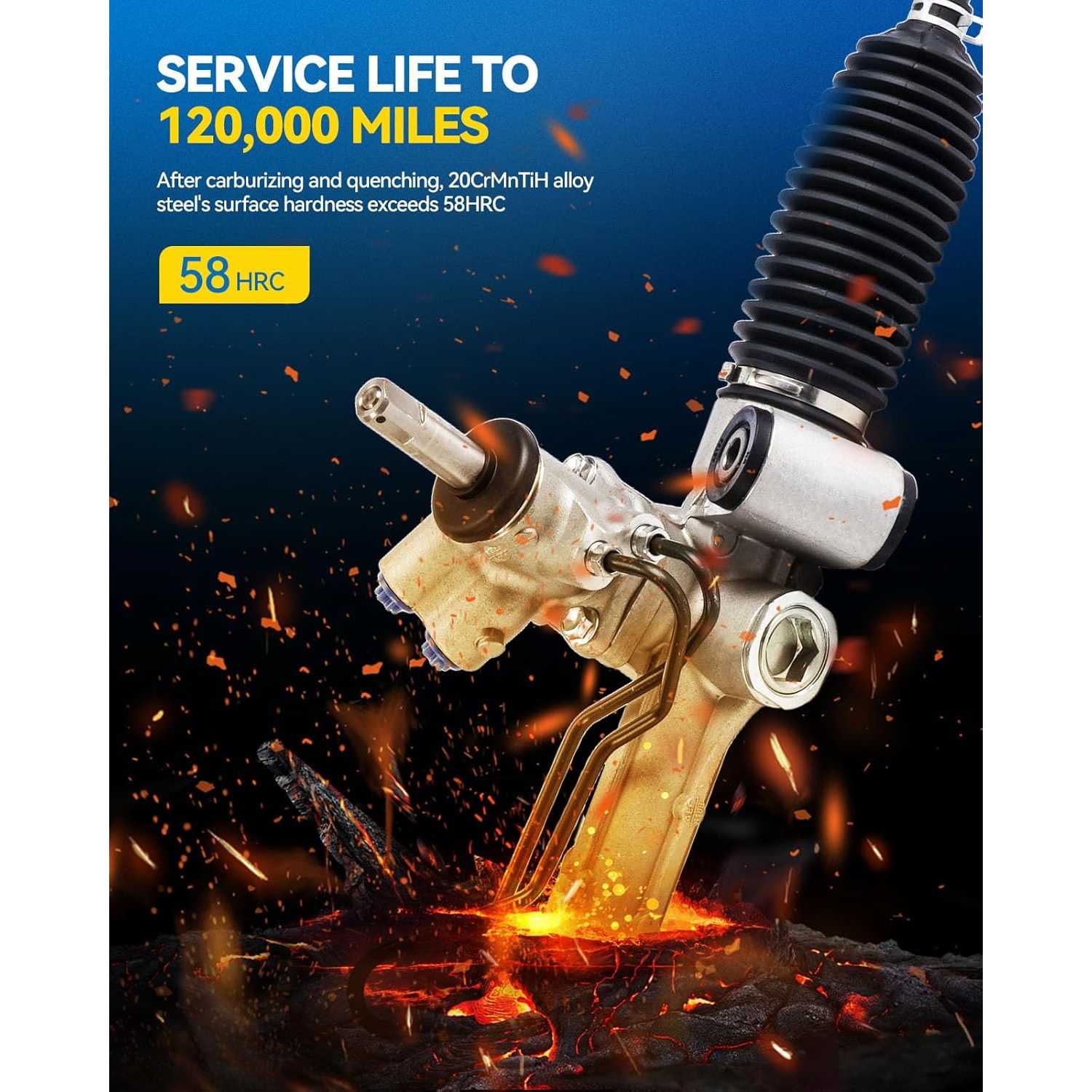

  • [HIGH VERTICALITY]: The rack and worm gear in the steering rack and pinion are made of high-strength alloy steel processed by high-precision CNC, which ensures the high verticality of the helical gear system, making the steering wheel operation more stable and driving safer. Closely integrated with the vehicle chassis will not produce noise and vibration.

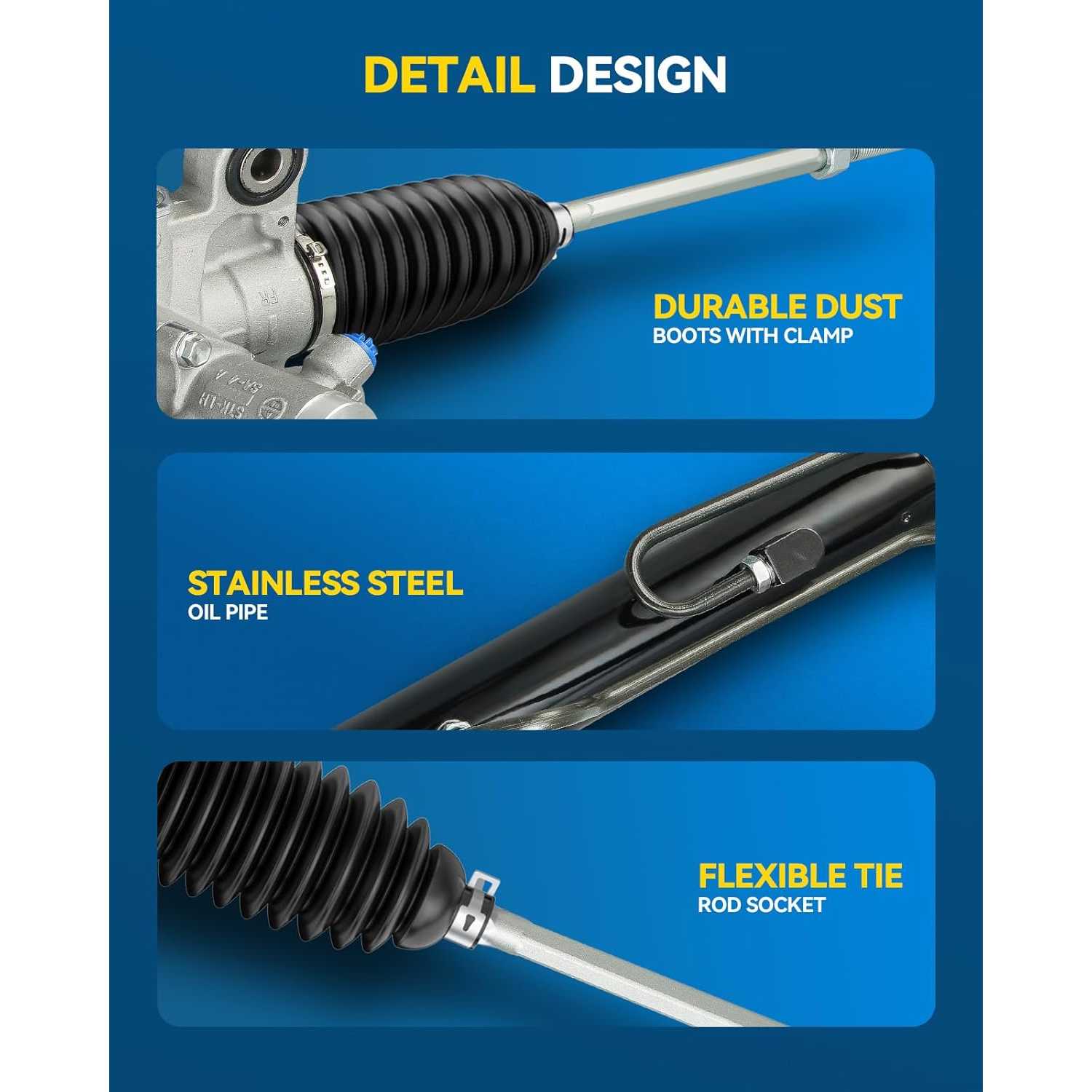

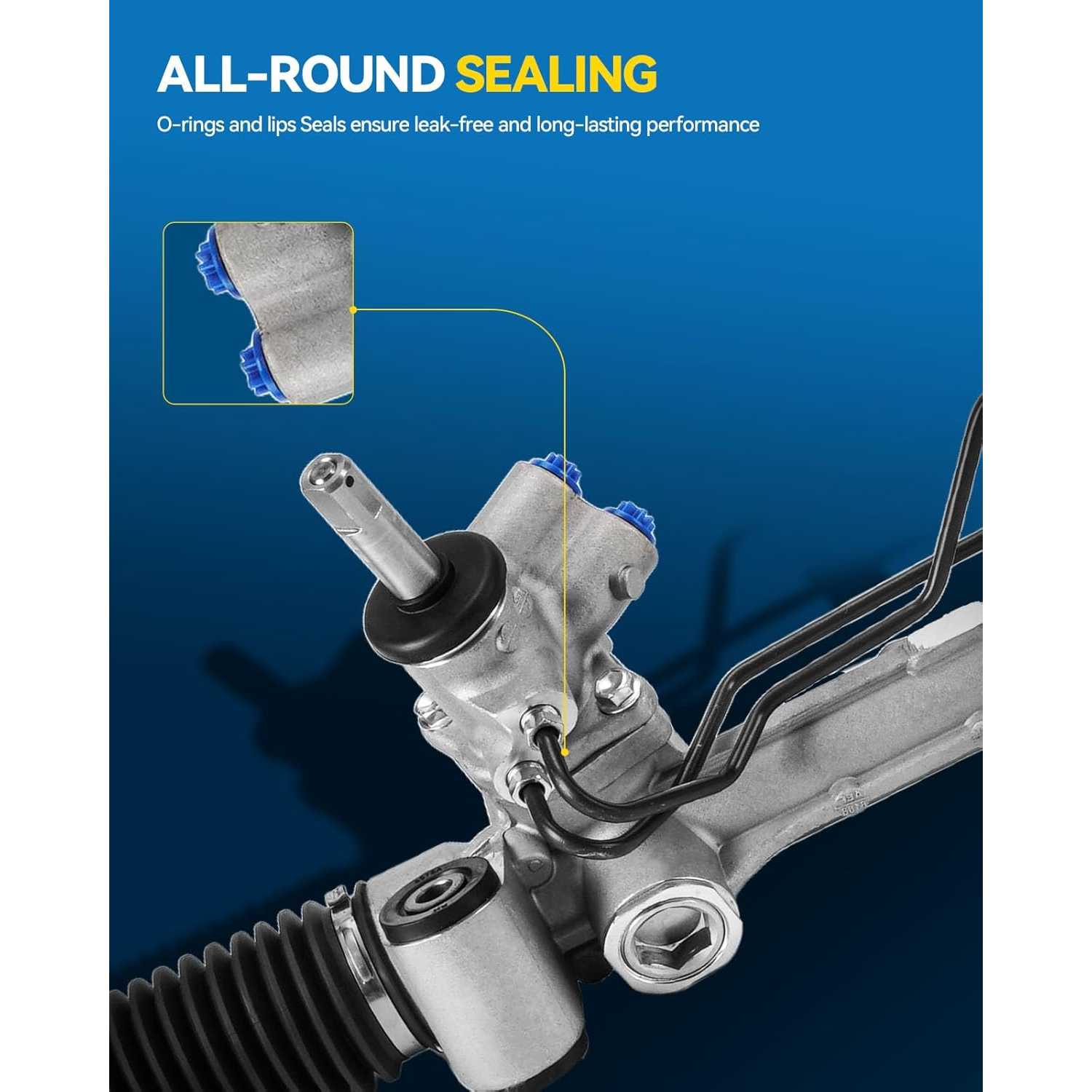

  • [DURABLE PERFORMANCE]: PHILTOP steering rack and pinion adopts corrosion-resistant oil seals and lip seals, and butyl rubber sealing covers. The 360°dust cover is fully protected to effectively prevent dust and dirt from entering the rack gear to cause wear and oil leakage. Service life more than 120,000 miles, 12-month unlimited mileage guarantee.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20132014201320142011 - 20132014201320142012 - 201320142011 - 20122012 - 201320142012 - 201320142012 - 2013201420132011 - 20142012201420112011 - 20142012 - 201420122011 - 20142011 - 20142011 - 20142011 - 20142011 - 20132015 - 202020202012 - 20142012 - 20142012
MakeChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodge
Model300300300300300300300300300300300300300300300300300300ChallengerChallengerChallengerChallengerChallengerChallengerChallengerChargerChargerChargerChargerChargerChargerChargerChargerChargerCharger
TrimBaseBaseCCCCC LuxuryC LuxuryC LuxuryC LuxuryLimitedSSSSSRT8SRT8SRT8 CoreR/TR/T ClassicRallye RedlineSESRT8SXTSXT PlusPursuitPursuitR/TSESESRT HellcatSRT Hellcat WidebodySRT8SXTSXT Plus
Engine3.6L V63.6L V63.6L V63.6L V65.7L V85.7L V83.6L V63.6L V65.7L V85.7L V83.6L V63.6L V63.6L V65.7L V85.7L V86.4L V86.4L V86.4L V85.7L V85.7L V83.6L V63.6L V66.4L V83.6L V63.6L V63.6L V65.7L V85.7L V83.6L V65.7L V86.2L V86.2L V86.4L V83.6L V63.6L V6
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Sales Codes are found on the "Body Code" plate located on the left front side shield, wheel housing, or the upper radiator support of your vehicle;with Hydraulic Power;with Touring Suspension ( (SDC) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Sales Codes are found on the "Body Code" plate located on the left front side shield, wheel housing, or the upper radiator support of your vehicle;with Hydraulic Power;with Touring Suspension ( (SDC) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Sales Codes are found on the "Body Code" plate located on the left front side shield, wheel housing, or the upper radiator support of your vehicle;with Hydraulic Power;with Touring Suspension ( (SDC) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Sales Codes are found on the "Body Code" plate located on the left front side shield, wheel housing, or the upper radiator support of your vehicle;with Hydraulic Power;with Touring Suspension ( (SDC) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Sales Codes are found on the "Body Code" plate located on the left front side shield, wheel housing, or the upper radiator support of your vehicle;with Hydraulic Power;with Touring Suspension ( (SDC) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Sales Codes are found on the "Body Code" plate located on the left front side shield, wheel housing, or the upper radiator support of your vehicle;with Hydraulic Power;with Touring Suspension ( (SDC) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Sales Codes are found on the "Body Code" plate located on the left front side shield, wheel housing, or the upper radiator support of your vehicle;with Hydraulic Power;with Touring Suspension ( (SDC) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Sales Codes are found on the "Body Code" plate located on the left front side shield, wheel housing, or the upper radiator support of your vehicle;with Hydraulic Power;with Touring Suspension ( (SDC) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting dimensions, input shaft connections, and hydraulic ports.
  • Inspect related parts: Check tires, suspension, tie rods, steering joints, pump, and hoses.
  • Prepare the system: Flush contaminated fluid and prepare new seals that match vehicle specifications.

Installation Steps

  • STEP 1 — Secure the vehicle, disconnect the negative battery cable, and secure the steering wheel to prevent free rotation.
  • STEP 2 — Mark connection positions. Disconnect tie rods, hydraulic lines, and the steering shaft; collect drained fluid.
  • STEP 3 — Remove the old rack and flush the lines before connecting the replacement.
  • STEP 4 — Center the new rack and install it in alignment with the steering wheel. Tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect the steering shaft, tie rods, and hydraulic lines using new specified seals.
  • STEP 6 — Refill with the correct power steering fluid and bleed the system using the vehicle-specific procedure. Never run the system without sufficient fluid.

After Installation

  • Check fluid level, hydraulic connections, and fasteners.
  • Verify smooth steering without binding, unusual noise, or fluid foaming.
  • Have a four-wheel alignment performed.
  • After the alignment and safety checks, road-test for straight tracking, steering wheel centering, and normal steering return.

Product Video

Product Description

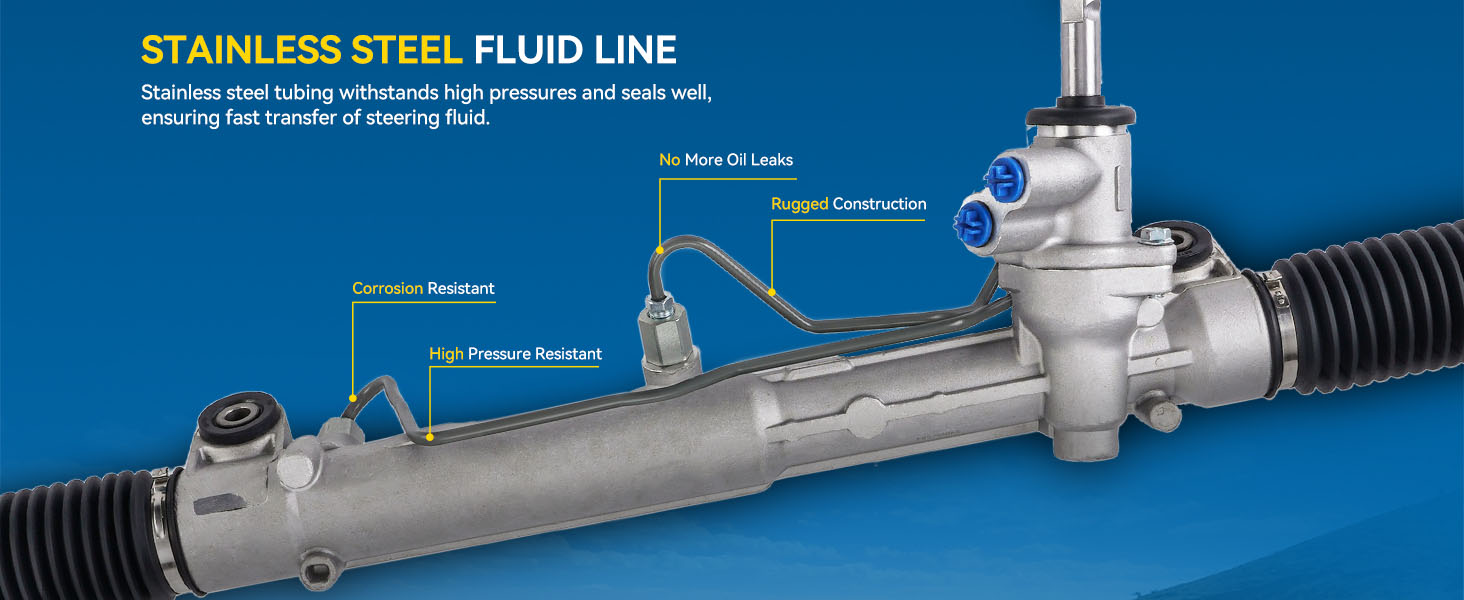

POWER RACK AND PINION ASSEMBLYPOWER STEERING RACK AND PINION ASSEMBLY

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

Tj Johnson

03/04/2025

Verified buyer

Works flawlessly with my Chrysler 300 2014. Quality is superb, and shipping was quick.

Tom_Handy_108

05/09/2026

Got this installed on my Charger and it was a breeze. Fitment was perfect, and it feels so much tighter now. Much better than the worn-out original.

FAQS

Normally, failures are due to normal wear and tear, lack of power steering fluid maintenance, and impacts.

For a hydraulic steering system, use only the fluid specified by the vehicle manufacturer. Fluid requirements vary by vehicle.

Included components vary by product. Please check the Package Contents section and product images before ordering.
