2009 Polaris Ranger RZR S Military | Rear Driver Side & Passenger Side ATV/UTV Compatible CV Axle Shaft | POL7031 - PHILTOP

2009 Polaris Ranger RZR S Military | Rear Driver Side & Passenger Side ATV/UTV Compatible CV Axle Shaft | POL7031 - PHILTOP

Rear

Built to Last

4.6

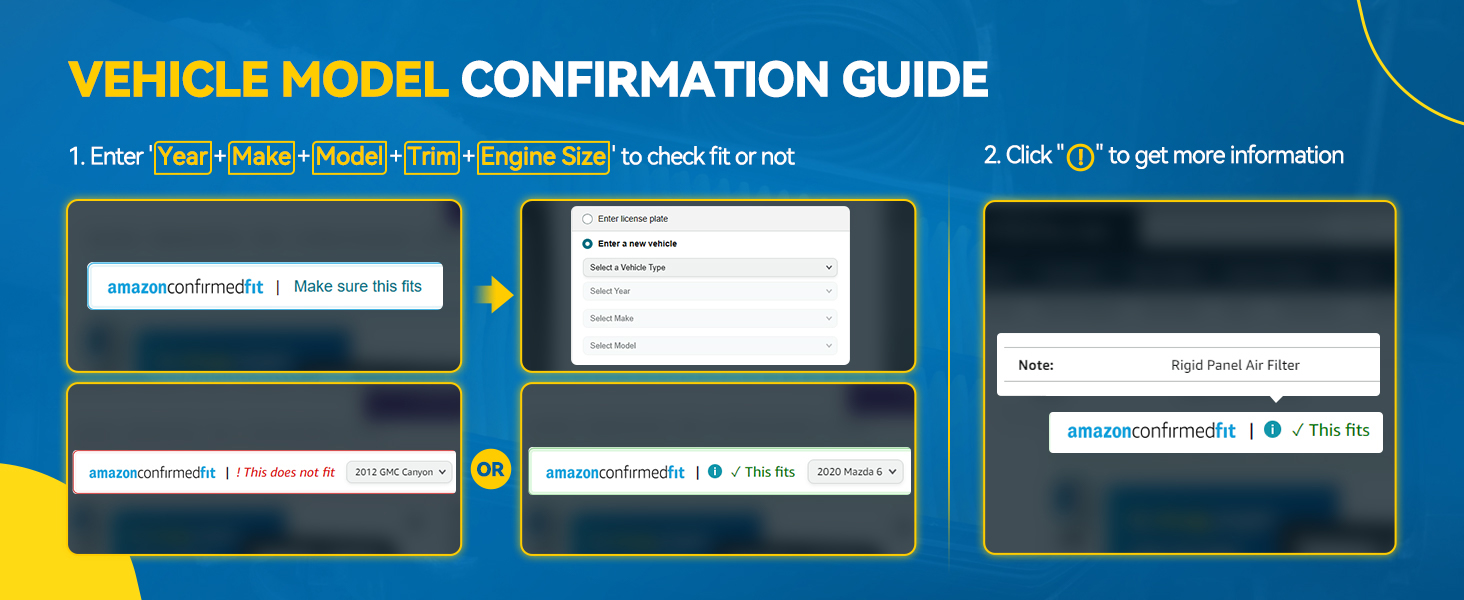

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
99ISSHA1987US

Specifications

Brand
PHILTOP
Position
Rear
ABS Ring Included
No
Quantity
2
Input Shaft Spline Count
27
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
26
Items Included

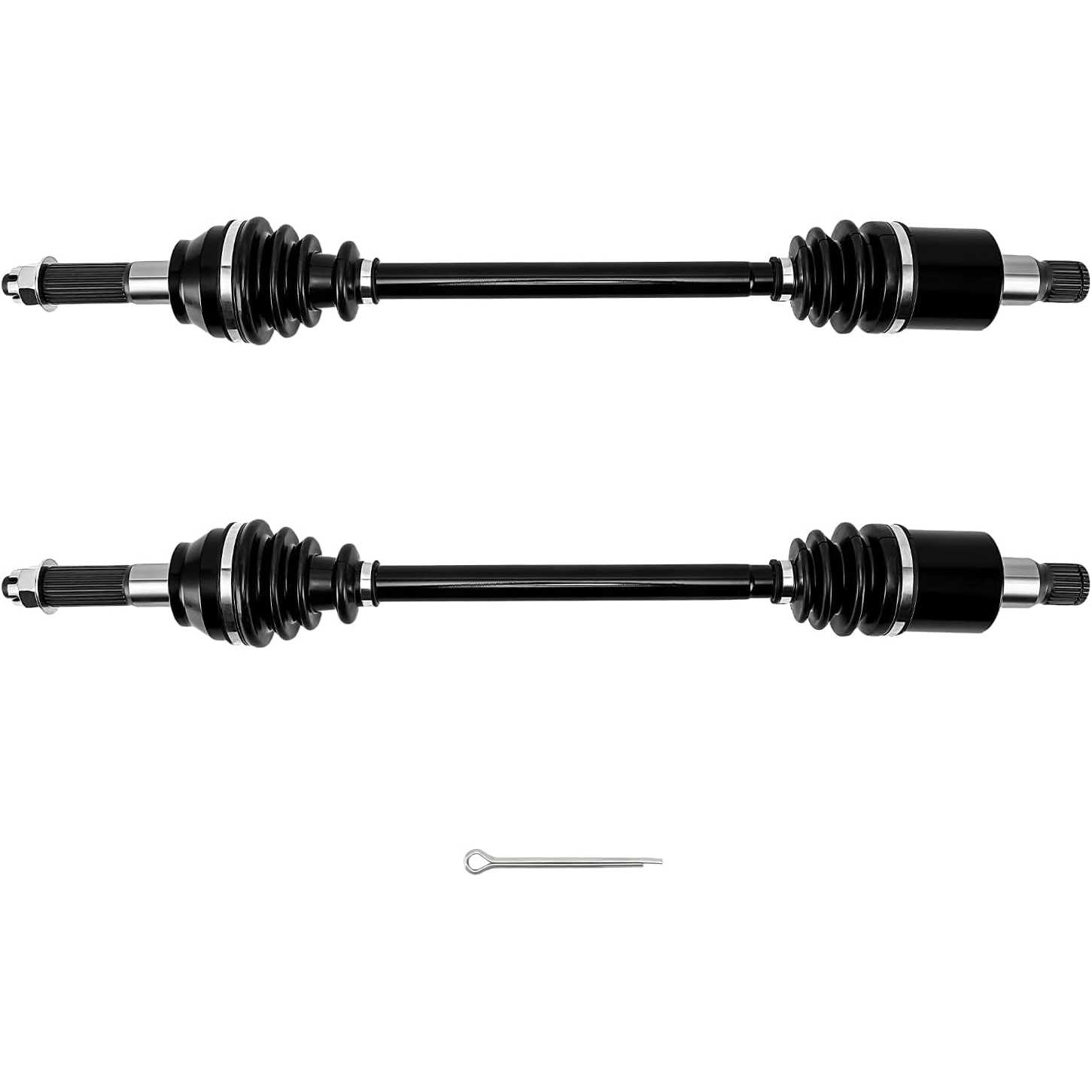

2x Rear Cv Axle Shaft
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
POL7031

Highlights

  • Fitment: PHILTOP Axle Shaft Fits Sportsman 400 HO 2011-2012, Sportsman Forest 800 6x6 2012, RZR S 800 2014, Sportsman Forest 800 2012, Ranger RZR 4 800 Gordon Edition 2010-2012, Sportsman 700 EFI X2 2008, Sportsman Forest 500 2011-2012, Sportsman 800 EFI 2007-2008 2011-2012, Sportsman 500 HO Touring 2010-2012, Sportsman 800 EFI X2 2008-2009, Ranger RZR 800 2009-2010, Ranger RZR 4 800 EPS Robby Gordon 2011, Ranger RZR 4 800 2012-2013, Sportsman 500 EFI X2 2007-2009.
  • Adaptation Verification: For a better experience, make sure the CV Axle Shaft is suitable for your vehicle before purchasing the Axle Shaft.

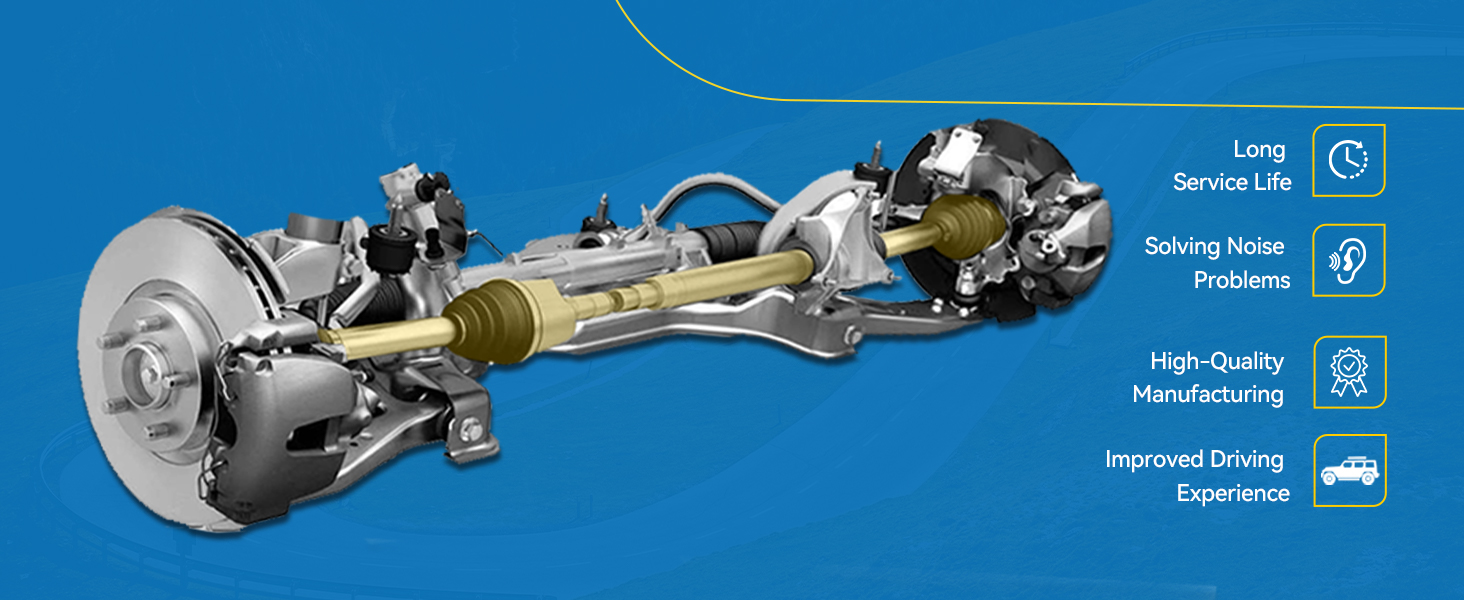

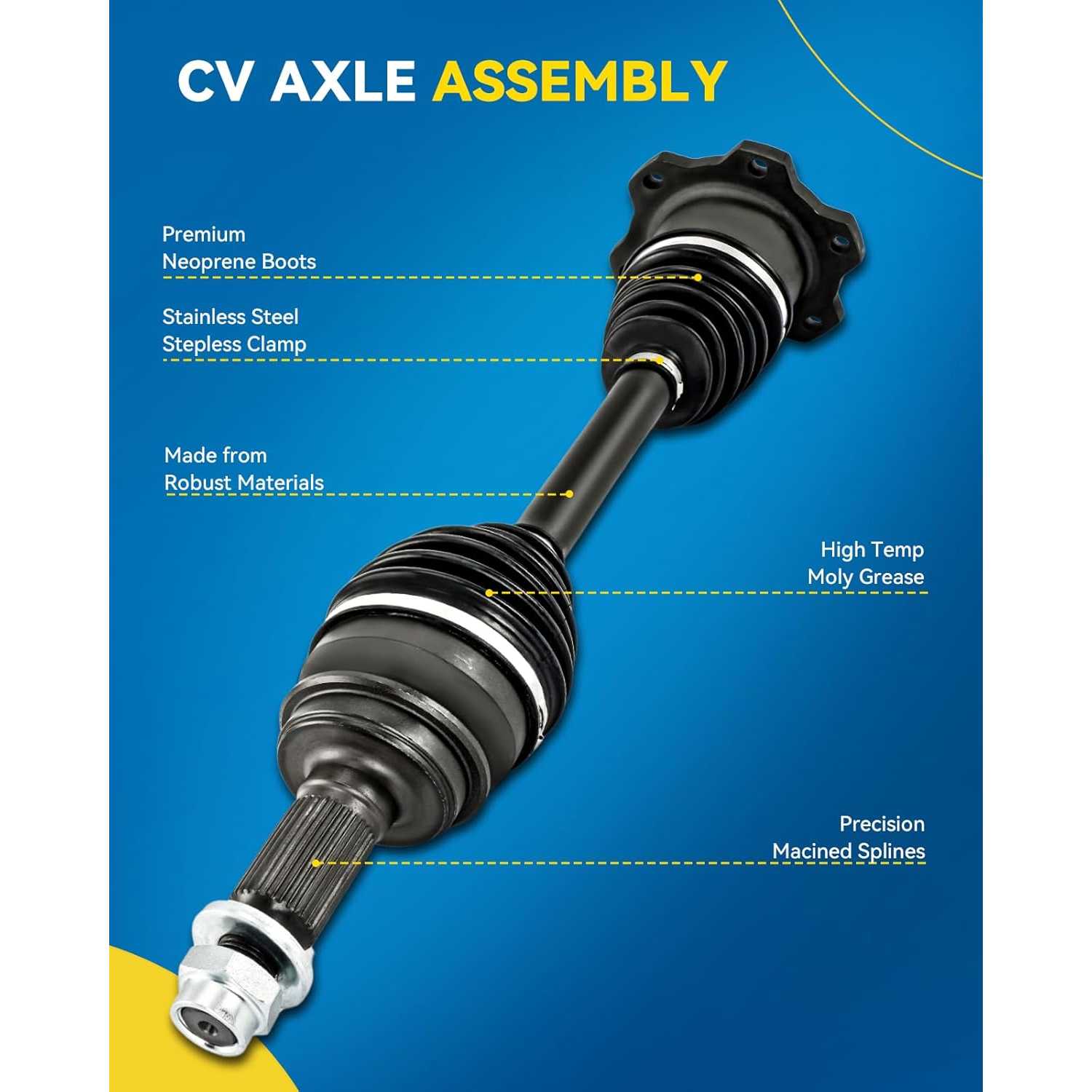

  • Function: CV axles are the final link between the engine and the wheels, transferring power from the vehicle's transmission and differential to the wheels to drive the vehicle forward. A good CV axle assembly makes for a smoother ride.

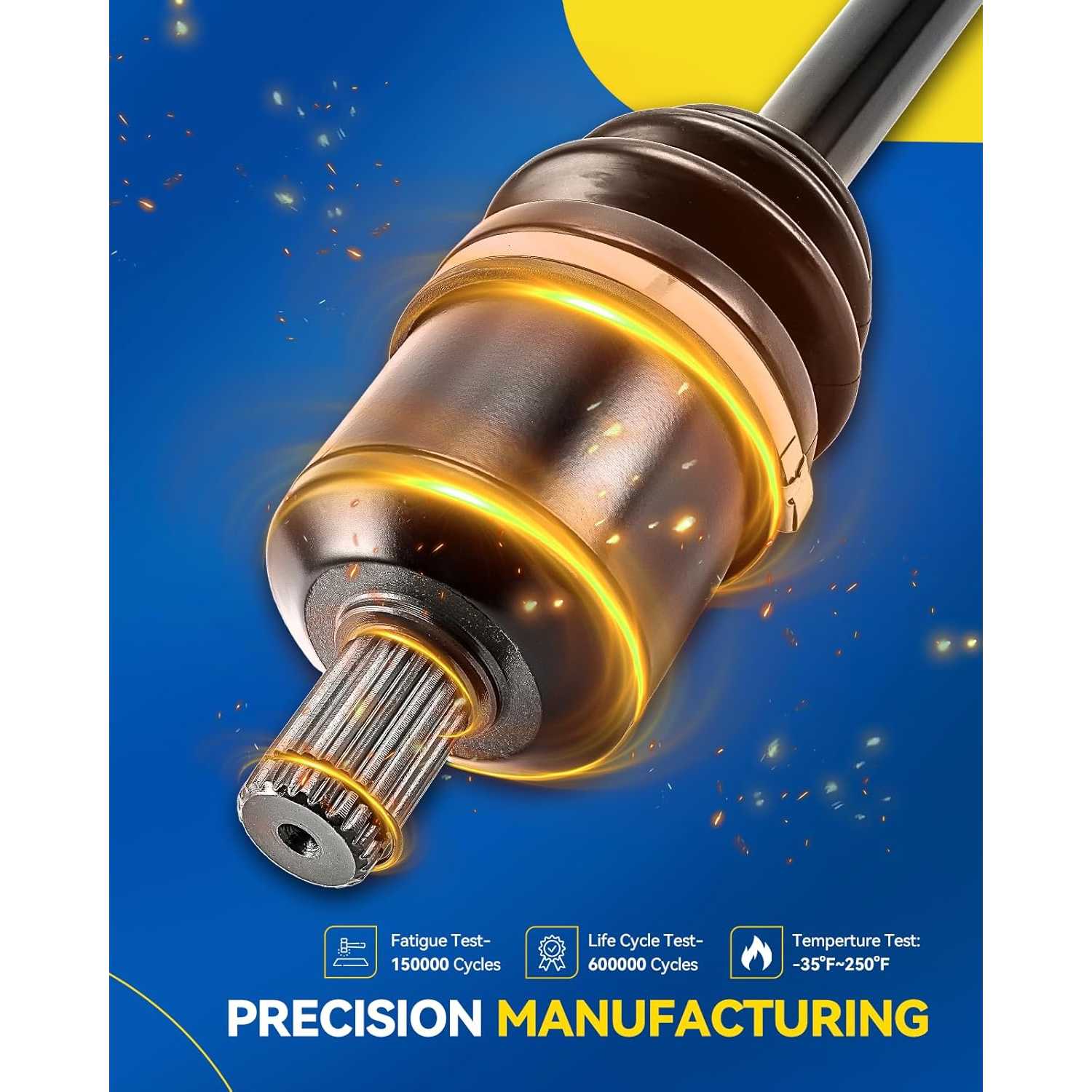

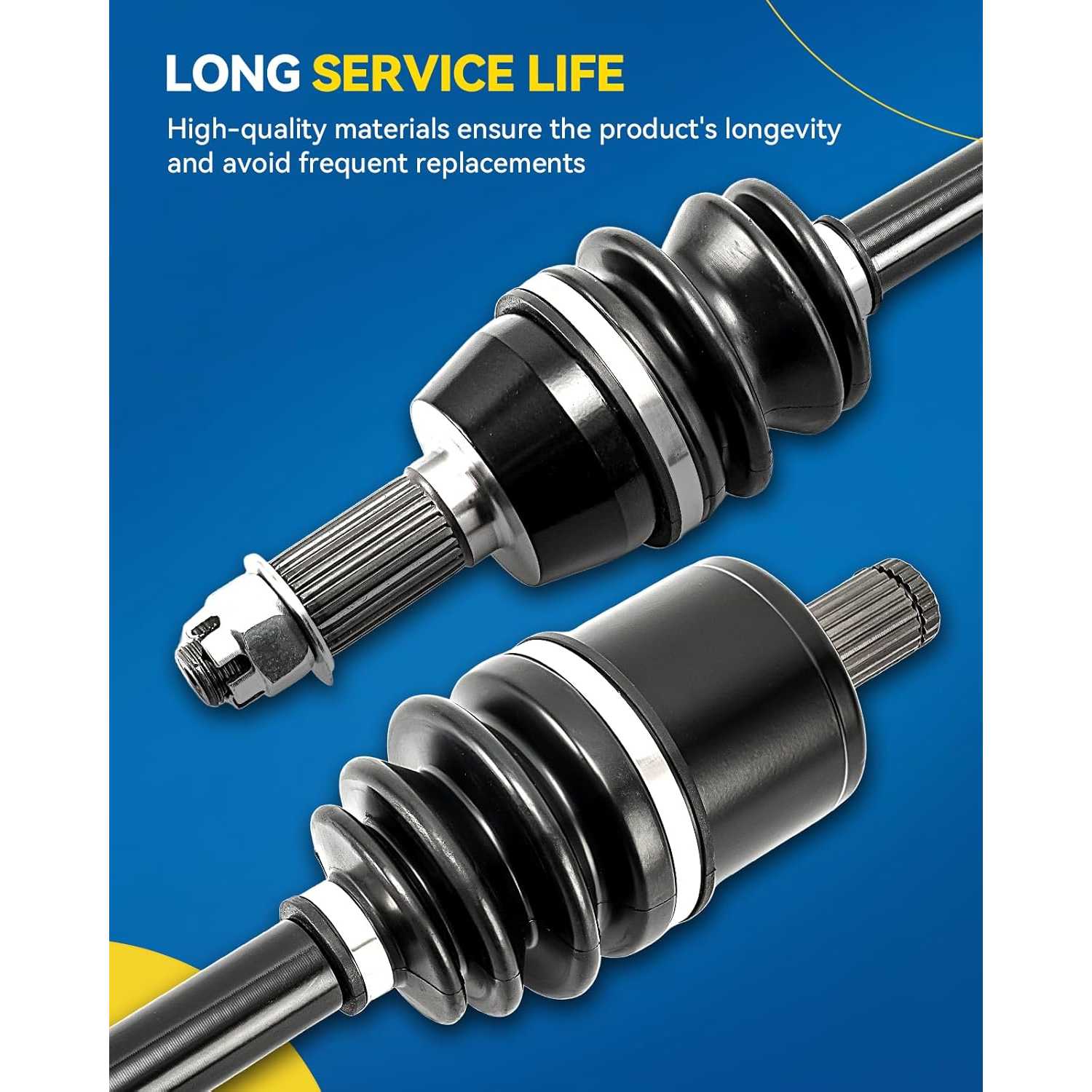

  • High Quality: The cv axle shafts are made of high quality materials with strong corrosion resistance, which improves the reliability and performance of the cv axle assembly.

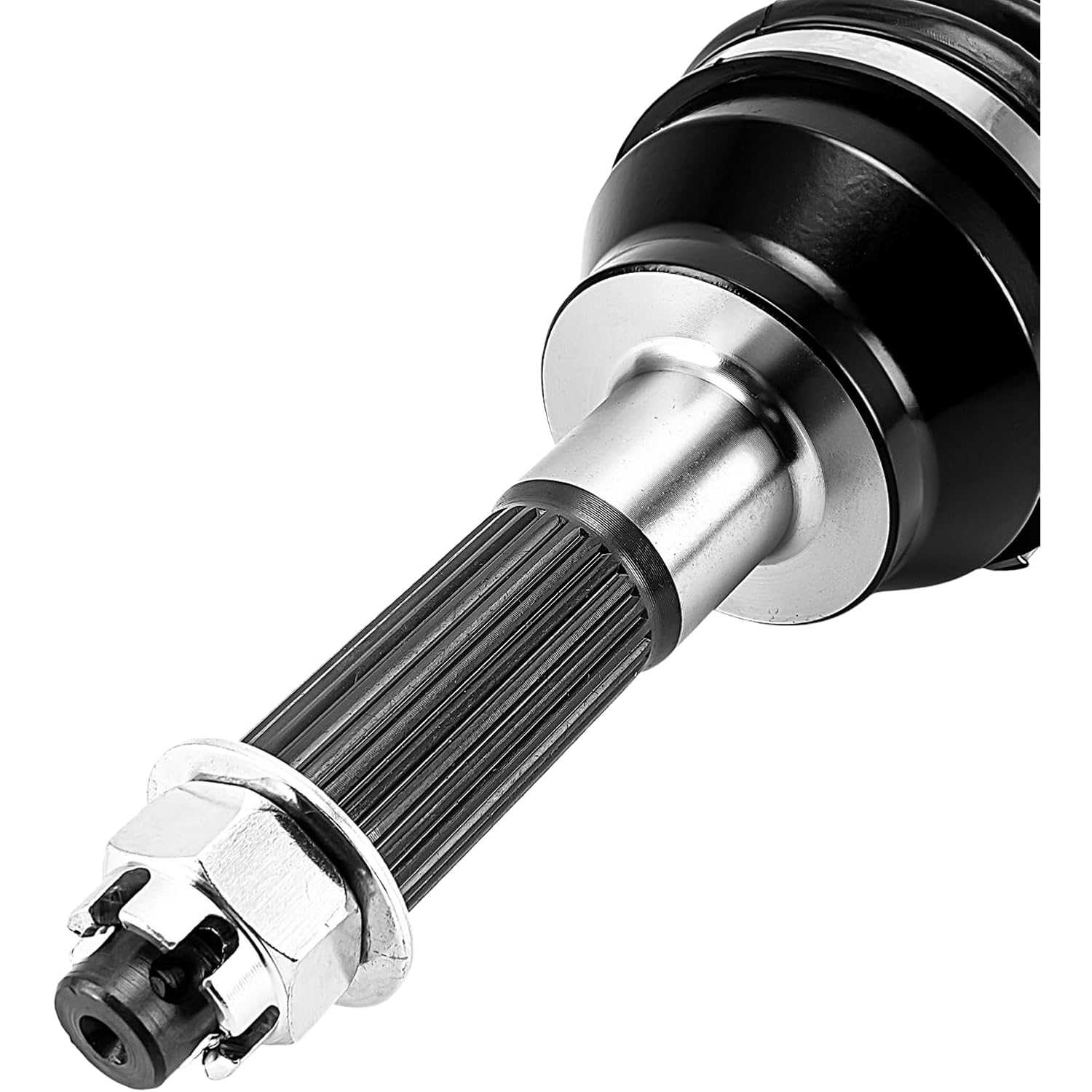

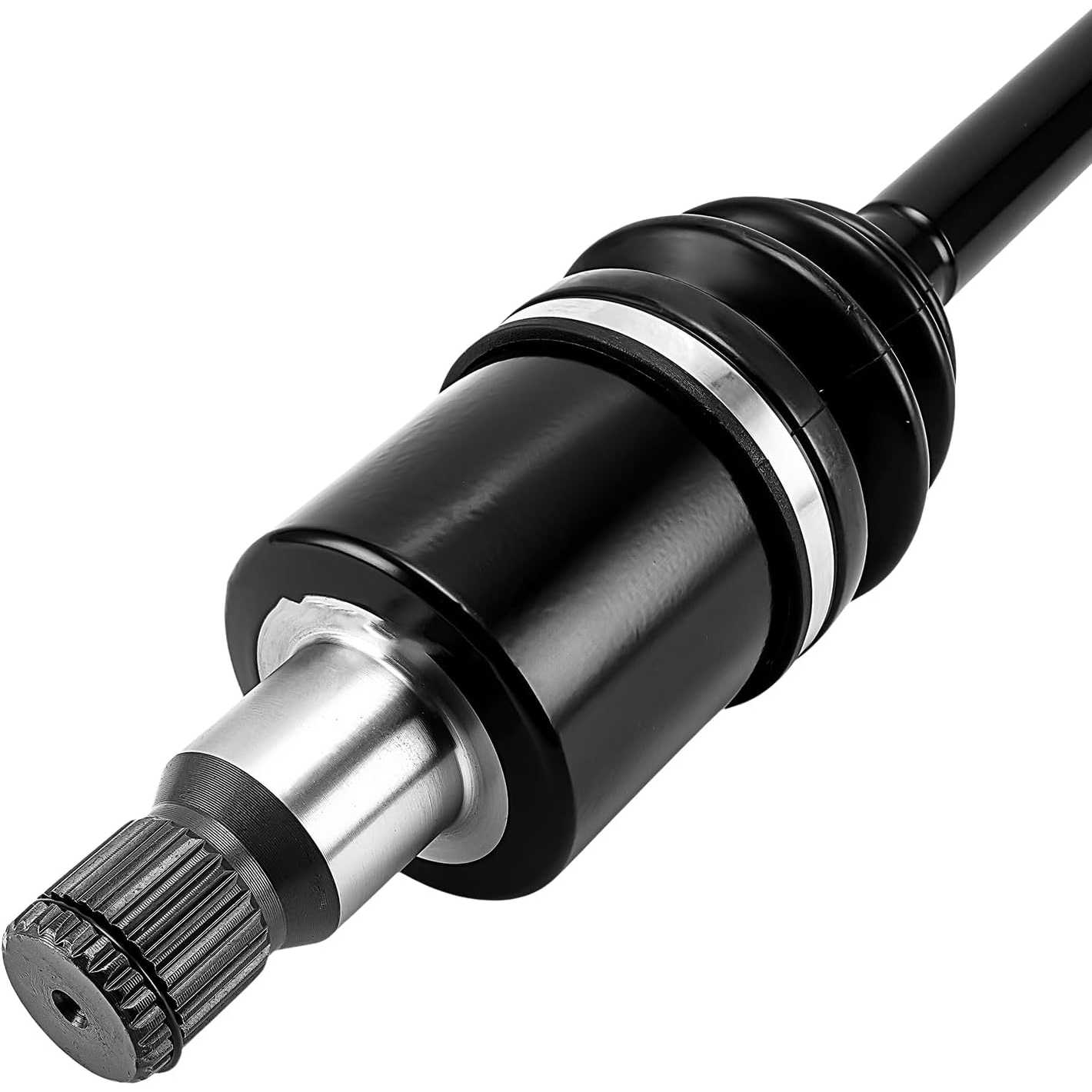

  • Easy to install: Brand new cv axle shaft. Threads and splines are precision rolled for easy direct replacement.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2014201420142011201020122009 - 2012201220112009
MakePolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolaris
ModelRZR 4 800 EPS LERZR S 800RZR S 800 EPS LERanger RZR 4 800 EPS Robby GordonRanger RZR 4 800 Gordon EditionRanger RZR 4 800 Gordon EditionRanger RZR 800 SRanger RZR 800 S LERanger RZR 800 SW MilitaryRanger RZR S Military
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine----------
Note
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
-
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.
