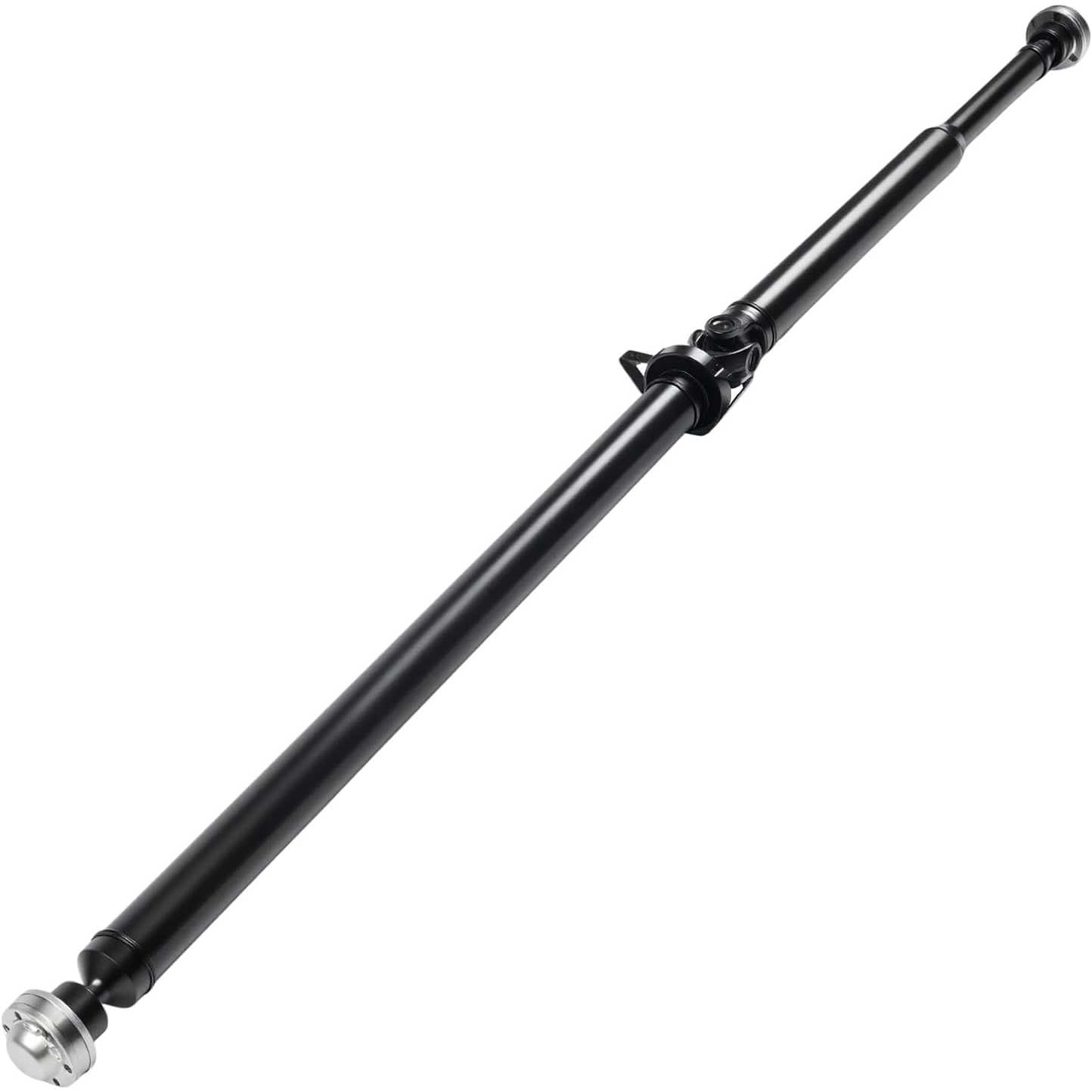

2013-2018 Ford Escape 1.5L/1.6L/2.0L/2.5L | Rear Drive Shaft | 946175 - PHILTOP

2013-2018 Ford Escape 1.5L/1.6L/2.0L/2.5L | Rear Drive Shaft | 946175 - PHILTOP

Rear

Factory-Balanced

Corrosion-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
15ISDSA1487US

Specifications

Brand
PHILTOP
Mounting Type
Cv Joint Mount
Position
Rear
Fully Extended Length
78.19 in/1986 mm
Fully Compressed Length
76.61 in/1946 mm
Shaft Diameter
Φ60
Items Included
1x Drive Shaft - 946175
Surface Finish
Painted
Two-Piece Design
Yes
Universal Joint Size
φ25*64
Adjustable Length
Yes
Tube Wall Thickness
0.07 in/1.8 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
946175

Highlights

  • (Compatibility)Fits 2018 Ford Escape, 2017 Ford Escape, 2014 Ford Escape, 2013 Ford Escape, 2015 Ford Escape, 2016 Ford Escape, 2017 Lincoln MKC, 2015 Lincoln MKC, 2018 Lincoln MKC, and 2016 Lincoln MKC. This drive shaft assembly is listed for the exact vehicle fitment shown in Product Data, helping you confirm application before ordering and reducing guesswork during replacement
  • (OE Reference) OE numbers listed for this part are 946175, EJ7Z4R602B, CV6Z4R602B, CV6Z4R602A, and EJ7Z4R602D. Use these exact references to compare your original component and verify the correct match for your vehicle. Each number is provided separately in Product Data, so you can check compatibility with confidence before installation
  • (Specifications)①Installation Position: Rear Side; ②Extended Shaft Length: 78.19 inch; ③Compressed Shaft Length: 76.61 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ60; ⑥Shaft Wall Thickness: 0.071 inch; ⑦U-Joint Size: φ25*64; ⑧Length is measured end to end across the entire driveshaft
  • (Attention)①Mounting Type: Ball Cage Mount; ②Design: Two-Piece; ③Adjustable Length for Custom Fit; ④Please verify vehicle compatibility via Philtop’s Confirmed Fit Tool and thoroughly read the product description prior to purchase
  • (High Quality)Each drive shaft is high-speed dynamically balanced before shipment. This process helps reduce operational vibration and supports even drivetrain wear over time

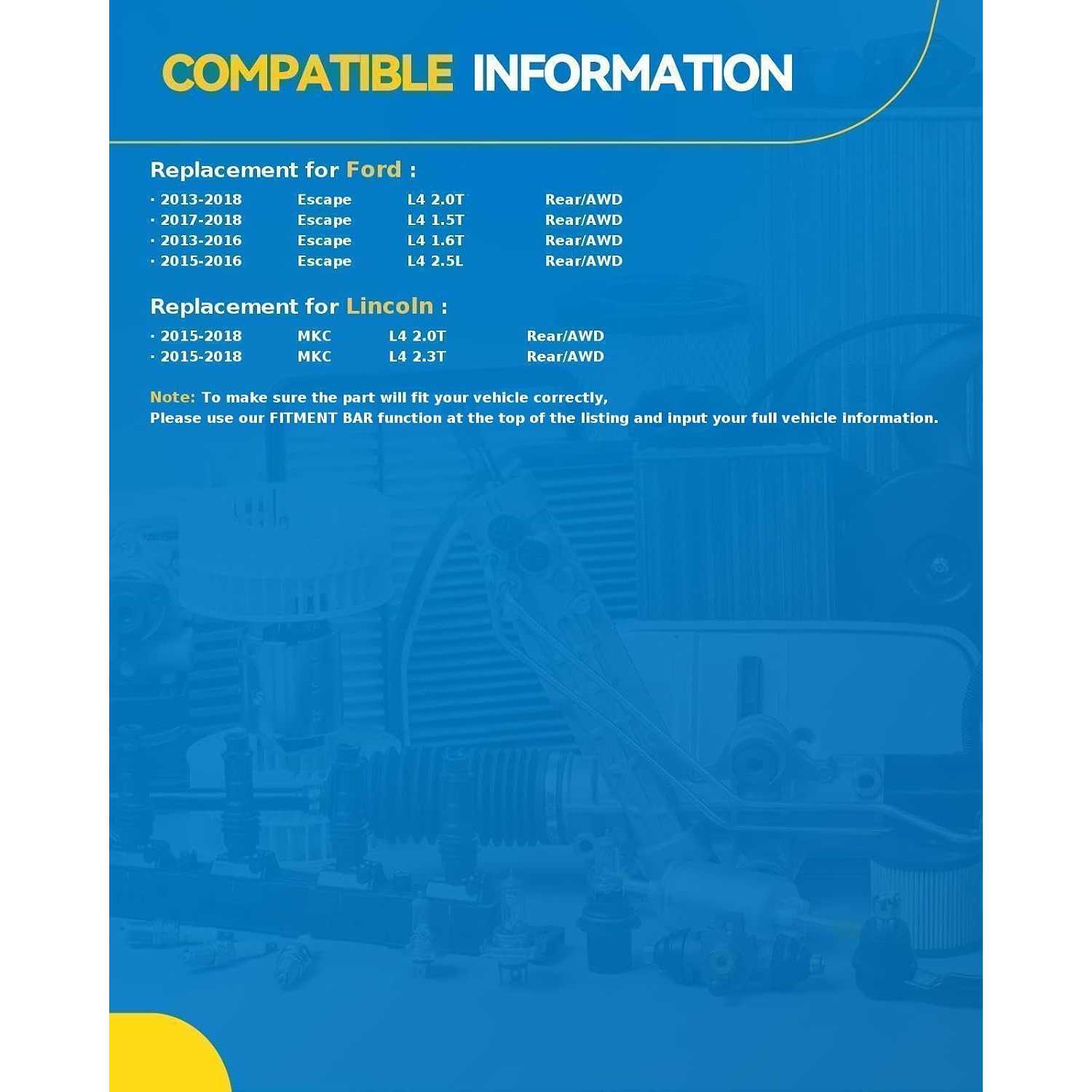

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2017 - 20182013 - 20162013 - 20182015 - 2016201820132013201820172014 - 20162013 - 2018201520152015 - 20182015 - 20182016 - 20182016 - 20182016 - 20182016 - 20182016 - 2018
MakeFordFordFordFordFordFordFordFordFordFordFordLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincoln
ModelEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeMKCMKCMKCMKCMKCMKCMKCMKCMKC
TrimSESESESESELSELSELSELTitaniumTitaniumTitaniumBaseBaseBlack LabelBlack LabelPremiereReserveReserveSelectSelect
Engine1.5L L41.6L L42.0L L42.5L L41.5L L41.6L L42.0L L42.0L L41.5L L41.6L L42.0L L42.0L L42.3L L42.0L L42.3L L42.0L L42.0L L42.3L L42.0L L42.3L L4
Note--------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

Drive Shaft AssemblyDrive Shaft Assembly
