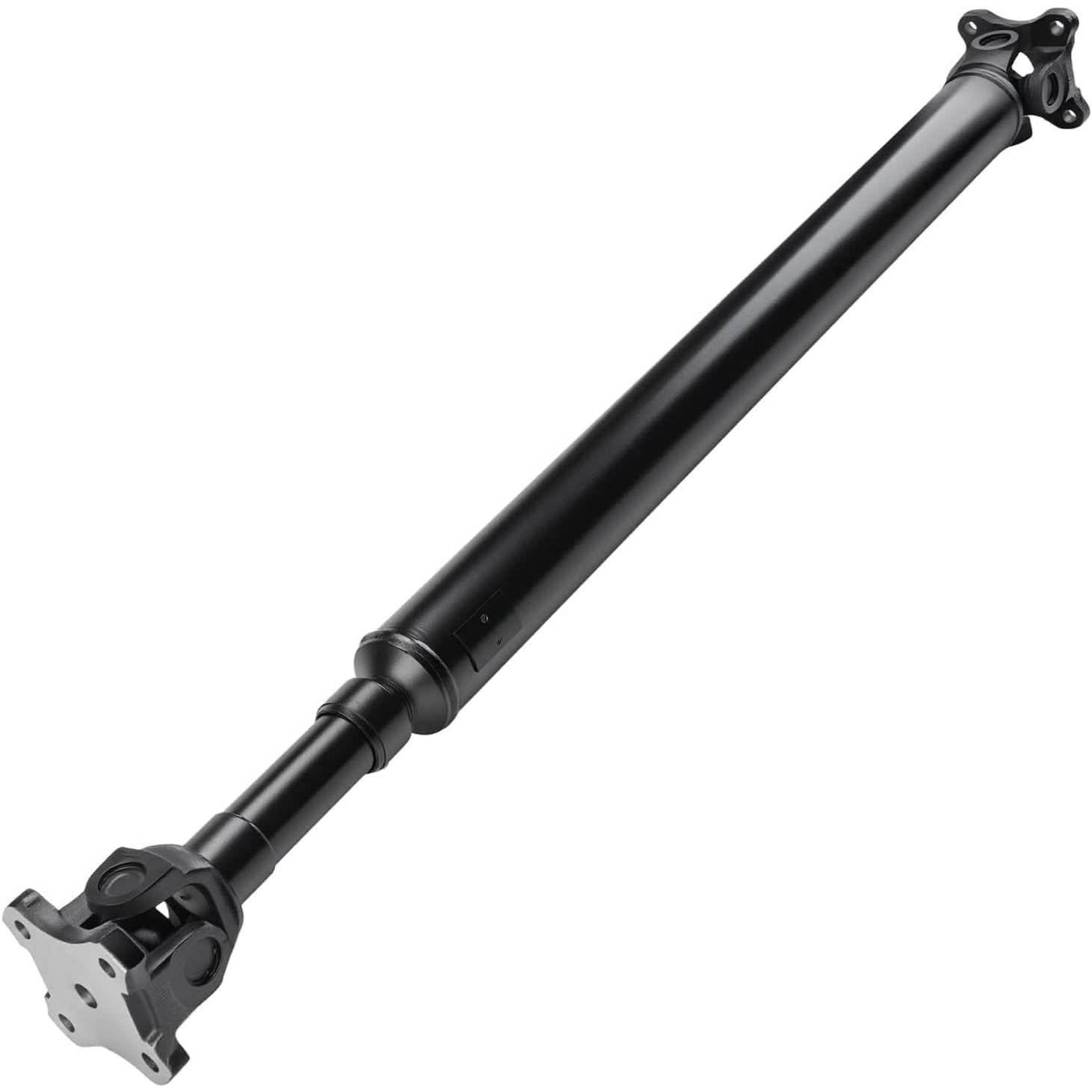

2006-2010 Jeep Commander 3.7L V6 | Rear Drive Shaft | 936077 - PHILTOP

2006-2010 Jeep Commander 3.7L V6 | Rear Drive Shaft | 936077 - PHILTOP

Rear

Factory-Balanced

Corrosion-Resistant

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
23ISDSA0197US

Specifications

Brand
PHILTOP
Mounting Type
Flange Mount
Position
Rear
Fully Extended Length
49.96 in/1269 mm
Fully Compressed Length
46.61 in/1184 mm
Shaft Diameter
Φ73
Items Included
1x Drive Shaft - 936077
Surface Finish
Painted
Flange Shape
Square
Bolt Hole Quantity
4
Two-Piece Design
No
Adjustable Length
Yes
Tube Wall Thickness
0.08 in/2 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
936077

Highlights

  • (Vehicle Fitments)Fits for Jeep 2005-2010 Grand Cherokee 3.7L AWD, 2006-2010 Commander 3.7L 4WD
  • (OE References)OE Number: 936077, 52853006AB, 52853006AE, 52853006AD, 52853006AF. Use these exact reference numbers when comparing the replacement drive shaft assembly with the original application. Confirm the selected reference against the vehicle information and existing part details before purchase to help reduce ordering errors.
  • (Specifications)①Installation Position: Rear Side; ②Extended Shaft Length: 49.96 inch; ③Compressed Shaft Length: 46.61 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ73; ⑥Shaft Wall Thickness: 0.079 inch; ⑦Length is measured end to end across the entire driveshaft
  • (Easy Installation)Built with exacting tolerances for a perfect match to your vehicle. The installation process is streamlined and hassle-free, getting you back on the road promptly. A design philosophy centered on user confidence and simplicity
  • (Buy with Confidence)PHILTOP is dedicated to making driving safer, more comfortable, and of higher quality. Choose our OEM-replacement drive shaft when it's time to replace yours – it dramatically improves ride smoothness and turns every commute into a more pleasurable experience

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20062006 - 20072007 - 2010200620052006 - 20082009 - 20102009 - 2010
MakeJeepJeepJeepJeepJeepJeepJeepJeep
ModelCommanderCommanderCommanderGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand Cherokee
Trim65th Anniversary EditionBaseSport65th Anniversary EditionLaredoLaredoLaredoLimited
Engine3.7L V63.7L V63.7L V63.7L V63.7L V63.7L V63.7L V63.7L V6
Note
NV140 Transfer Case
NV140 Transfer Case
NV140 Transfer Case
NV140 Transfer Case
-
NV140 Transfer Case
--

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.
