1999-2001 GMC Jimmy 4.3L V6 | Rear Drive Shaft | 946048 - PHILTOP

1999-2001 GMC Jimmy 4.3L V6 | Rear Drive Shaft | 946048 - PHILTOP

Rear

Factory-Balanced

Corrosion-Resistant

4.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
13ISDSA1427US

Specifications

Brand
PHILTOP
Mounting Type
Slip Yoke + Universal Joint (U-Joint)
Position
Rear
Fully Extended Length
43.62 in/1108 mm
Fully Compressed Length
43.62 in/1108 mm
Shaft Diameter
Φ73
Items Included
1x Drive Shaft - 946048
Surface Finish
Painted
Output Shaft Spline Count
32-1T
Two-Piece Design
No
Universal Joint Size
Φ28.6*62-Φ28.6*92
Adjustable Length
No
Tube Wall Thickness
0.08 in/2 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
946048

Highlights

  • (Vehicle Fitments)Fits 2002-2009 Trailblazer, Envoy, Rainier, Bravada, 1999-2005 Blazer, Jimmy
  • (Reference Number)946048,15152332,15725152,15188012,15036982,15036984
  • (Specifications)①Installation Position: Rear Side; ②Extended Shaft Length: 43.62 inch; ③Compressed Shaft Length: 43.62 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ73; ⑥Shaft Wall Thickness: 0.079 inch; ⑦U-Joint Size: Φ28.6*62-Φ28.6*92; ⑧Length is measured end to end across the entire driveshaft; ⑨Mounting Type: Slip Yoke + Universal Joint; ⑩Please verify vehicle compatibility via Philtop’s Confirmed Fit Tool and thoroughly read the product description prior to purchase
  • (Durable and Long-Lasting)Drive with confidence for years to come – our shaft is fully greased at all wear points, balanced for vibration-free operation, and built with materials that resist fatigue. It's the lasting solution for drivers who want reliability without constant repairs
  • (Quiet Operation Design)The system utilizes precision bearings and premium grease, supported by rigorous tolerance regulation. These features are designed to help lower driving-related noise

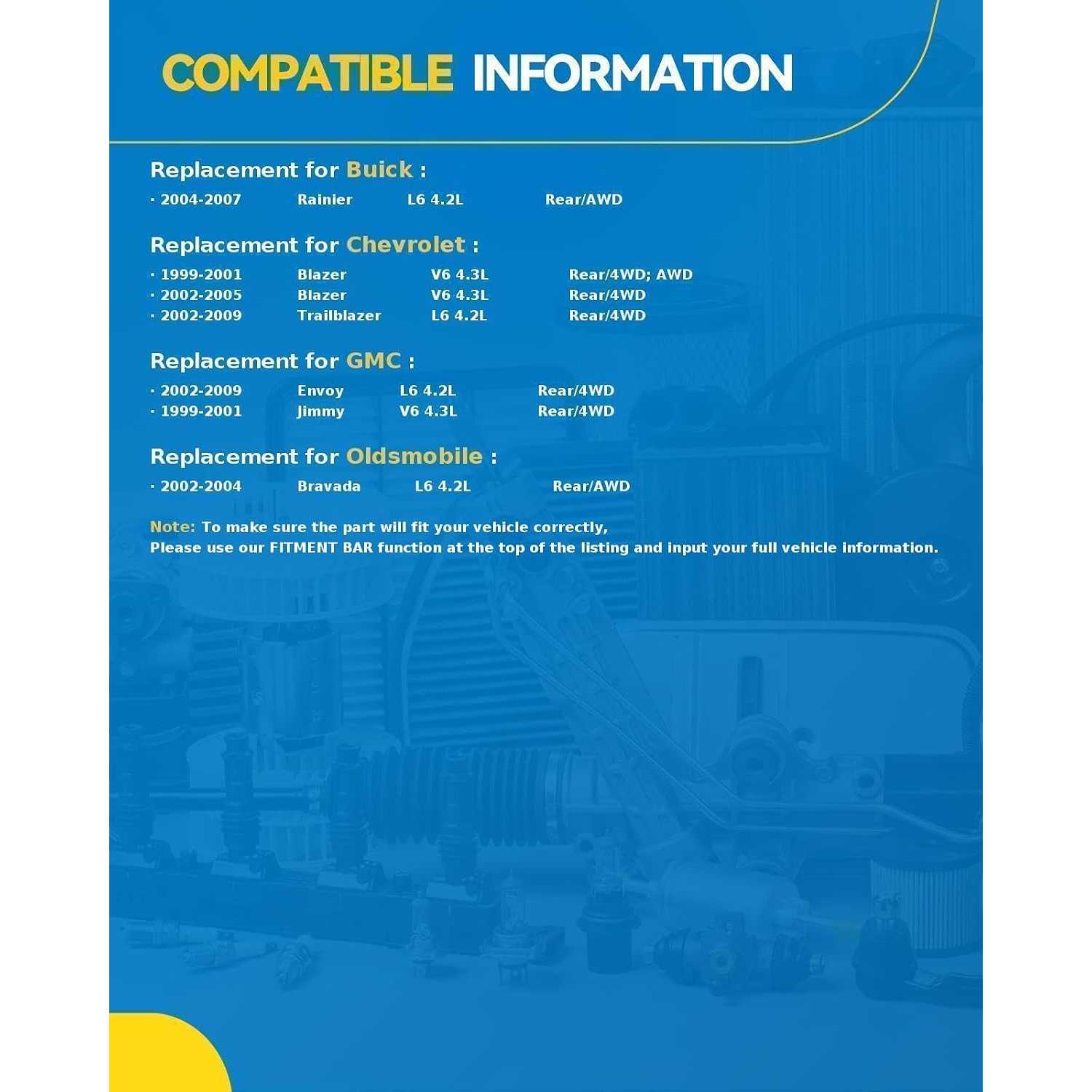

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 200620072004 - 2005199920051999 - 20012002 - 20041999 - 20011999 - 20012003 - 200520082002 - 200620072002 - 20062007 - 20092002 - 20032002 - 20042002 - 20062007 - 20092002 - 20062007 - 2009200020011999 - 2000199920011999 - 200020011999 - 200020011999 - 200020012002 - 2004
MakeBuickBuickBuickChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCOldsmobile
ModelRainierRainierRainierBlazerBlazerBlazerBlazerBlazerBlazerBlazerTrailblazerTrailblazerTrailblazerTrailblazerTrailblazerTrailblazerTrailblazerEnvoyEnvoyEnvoyEnvoyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyBravada
TrimCXLCXLCXL PlusBaseBaseLSLSLTTrailblazerZR2BaseLSLSLTLTLTZNorth FaceSLESLESLTSLTDiamond EditionDiamond EditionEnvoySLSLSLESLESLSSLSSLTSLTBase
Engine4.2L L64.2L L64.2L L64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.2L L6
Note-
w/o RPO Code N87 (18 x 8 In. Aluminum Wheel);w/o RPO Code PD8 (18 In. x 8 In. 5 Spoke Aluminum Wheel)
-
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case);w/o RPO Code ZR2 (High Wider Package)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case);w/o RPO Code ZR2 (High Wider Package)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case);w/o RPO Code ZR2 (High Wider Package)
w/o RPO Code N87 (18 x 8 In. Aluminum Wheel);w/o RPO Code PD8 (18 In. x 8 In. 5 Spoke Aluminum Wheel)
-
w/o RPO Code N87 (18 x 8 In. Aluminum Wheel);w/o RPO Code PD8 (18 In. x 8 In. 5 Spoke Aluminum Wheel)
-
w/o RPO Code N87 (18 x 8 In. Aluminum Wheel);w/o RPO Code PD8 (18 In. x 8 In. 5 Spoke Aluminum Wheel)
---
w/o RPO Code N87 (18 x 8 In. Aluminum Wheel);w/o RPO Code PD8 (18 In. x 8 In. 5 Spoke Aluminum Wheel)
-
w/o RPO Code N87 (18 x 8 In. Aluminum Wheel);w/o RPO Code PD8 (18 In. x 8 In. 5 Spoke Aluminum Wheel)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
-
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
-
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
-
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
-
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
--

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

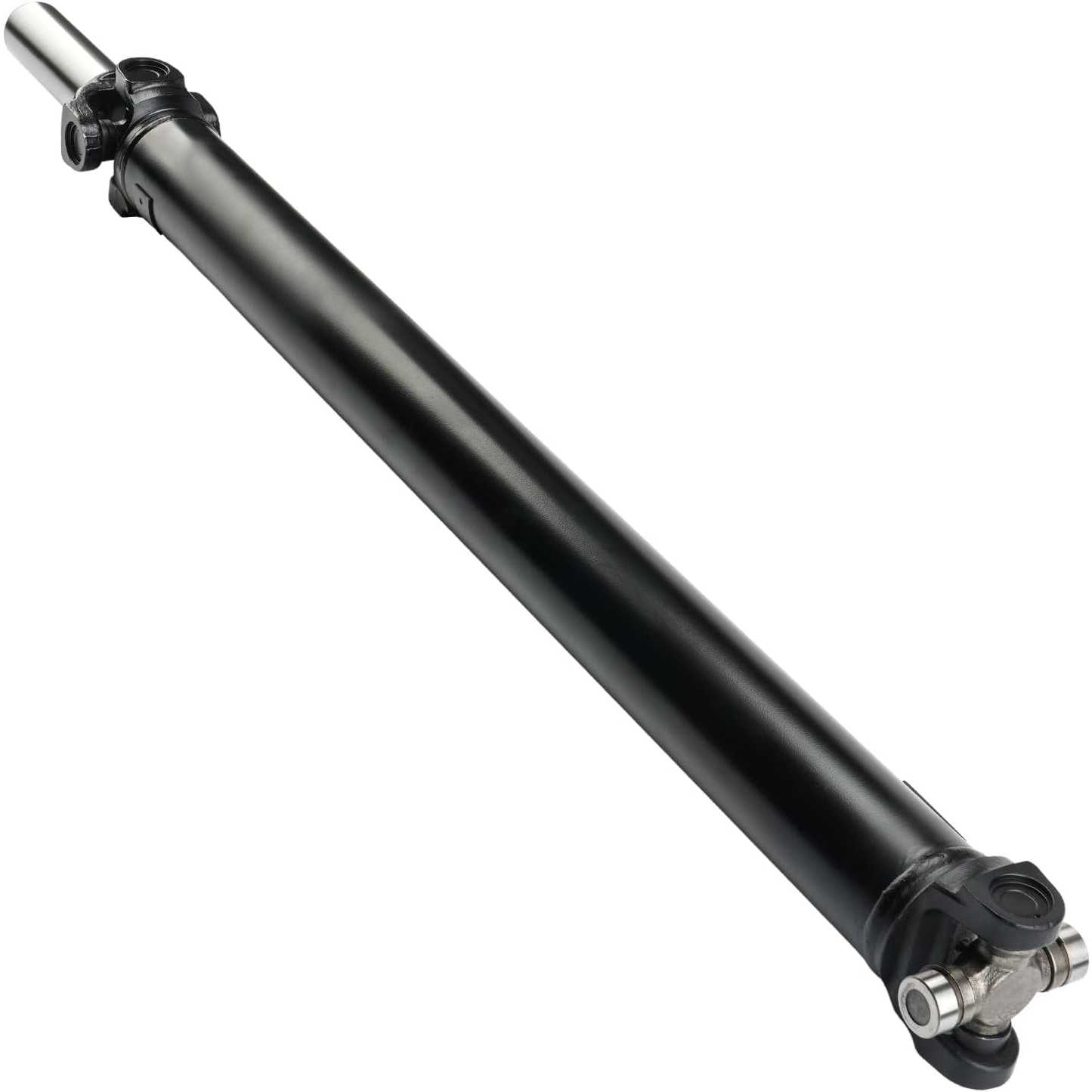

Drive Shaft AssemblyDrive Shaft Assembly

Reviews

4.0/5

Based on 3 reviews

533%
433%
333%
20%
10%

Kelly_SUV_Life_506

01/17/2026

Wasn't too difficult to put in, even for a DIYer like me. Fit perfectly, no issues at all. I compared it to some other options online, and this one seemed like the best bet for ease of installation and quality. Glad I went with it.

CarGuy_John_412

03/30/2026

Installation was pretty straightforward, about what I expected for this kind of job. It's definitely a good replacement, though maybe not quite as smooth as the original. Shipping was one day later than they said, but it wasn't a big deal.
