2011-2012 Jeep Grand Cherokee 3.6L V6 | Rear Drive Shaft | 976973 - PHILTOP

2011-2012 Jeep Grand Cherokee 3.6L V6 | Rear Drive Shaft | 976973 - PHILTOP

Rear

Factory-Balanced

Corrosion-Resistant

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
14ISDSA1837US

Specifications

Brand
PHILTOP
Mounting Type
Adapter Plate + Cv Joint
Position
Rear
Fully Extended Length
49.86 in/1266.5 mm
Fully Compressed Length
48.29 in/1226.5 mm
Shaft Diameter
Φ73/63.5
Items Included
1x Drive Shaft - 976973
Surface Finish
Painted
Two-Piece Design
Yes
Adjustable Length
Yes
Tube Wall Thickness
0.08 in/2 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
976973

Highlights

  • (Vehicle Fitments)Fits for Jeep 2011-2012 Grand Cherokee 3.6L AWD
  • (Reference Number)976973,52853647AC,52853647AF,52853647AE,52853647AD
  • (Specifications)①Installation Position: Rear Side; ②Extended Shaft Length: 49.86 inch; ③Compressed Shaft Length: 48.29 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ73/63.5; ⑥Shaft Wall Thickness: 0.079 inch; ⑦Length is measured end to end across the entire driveshaft; ⑧Mounting Type: Coupling Disc + Ball Cage; ⑨Design: Two-Piece; ⑩Adjustable Length for Custom Fit; ⑪Please verify vehicle compatibility via Philtop’s Confirmed Fit Tool and thoroughly read the product description prior to purchase
  • (Buy with Confidence)PHILTOP exists to make every drive better – safer, smoother, and more refined. If replacement time comes, our OEM-design drive shaft restores and elevates your vehicle's performance, giving you a noticeably more comfortable and pleasurable ride
  • (High Quality)Produced under monitored quality control from raw materials to final shipment, with inspections at each stage to support consistent performance and OEM design compliance

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20122011 - 20122011 - 20122012
MakeJeepJeepJeepJeep
ModelGrand CherokeeGrand CherokeeGrand CherokeeGrand Cherokee
TrimLaredoLimitedOverlandOverland Summit
Engine3.6L V63.6L V63.6L V63.6L V6
Note
w/ Sales Code DKA (2 Speed On Demand Transfer Case);w/ Sales Code DPP (215 mm Rear Axle)
w/ Sales Code DKA (2 Speed On Demand Transfer Case);w/ Sales Code DPP (215 mm Rear Axle)
w/ Sales Code DKA (2 Speed On Demand Transfer Case);w/ Sales Code DPP (215 mm Rear Axle)
w/ Sales Code DKA (2 Speed On Demand Transfer Case);w/ Sales Code DPP (215 mm Rear Axle)

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

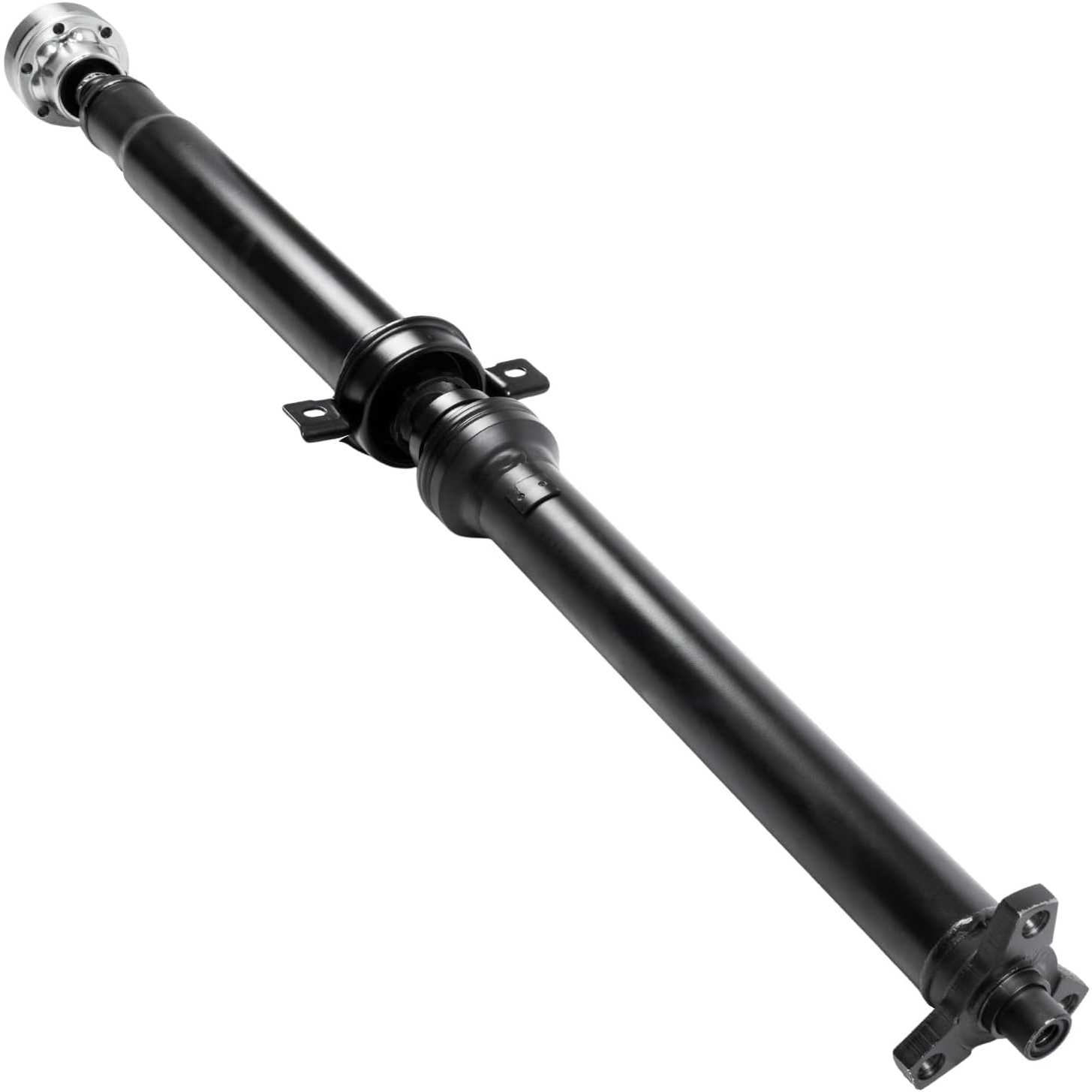

Drive Shaft AssemblyDrive Shaft Assembly

Reviews

4.3/5

Based on 3 reviews

533%
467%
30%
20%
10%

Nancy_FirstCar_942

02/21/2026

This rear drive shaft was a breeze to install. It lined up perfectly and all the hardware fit right. It's a quality part that's performing exactly as it should. Much cheaper than the OEM part.

DIY_Karen_801

06/28/2026

The drive shaft looks and feels like a quality part, definitely a good value. The only downside was the box was a little crushed on arrival, but the part itself was undamaged. Overall, a good purchase.
