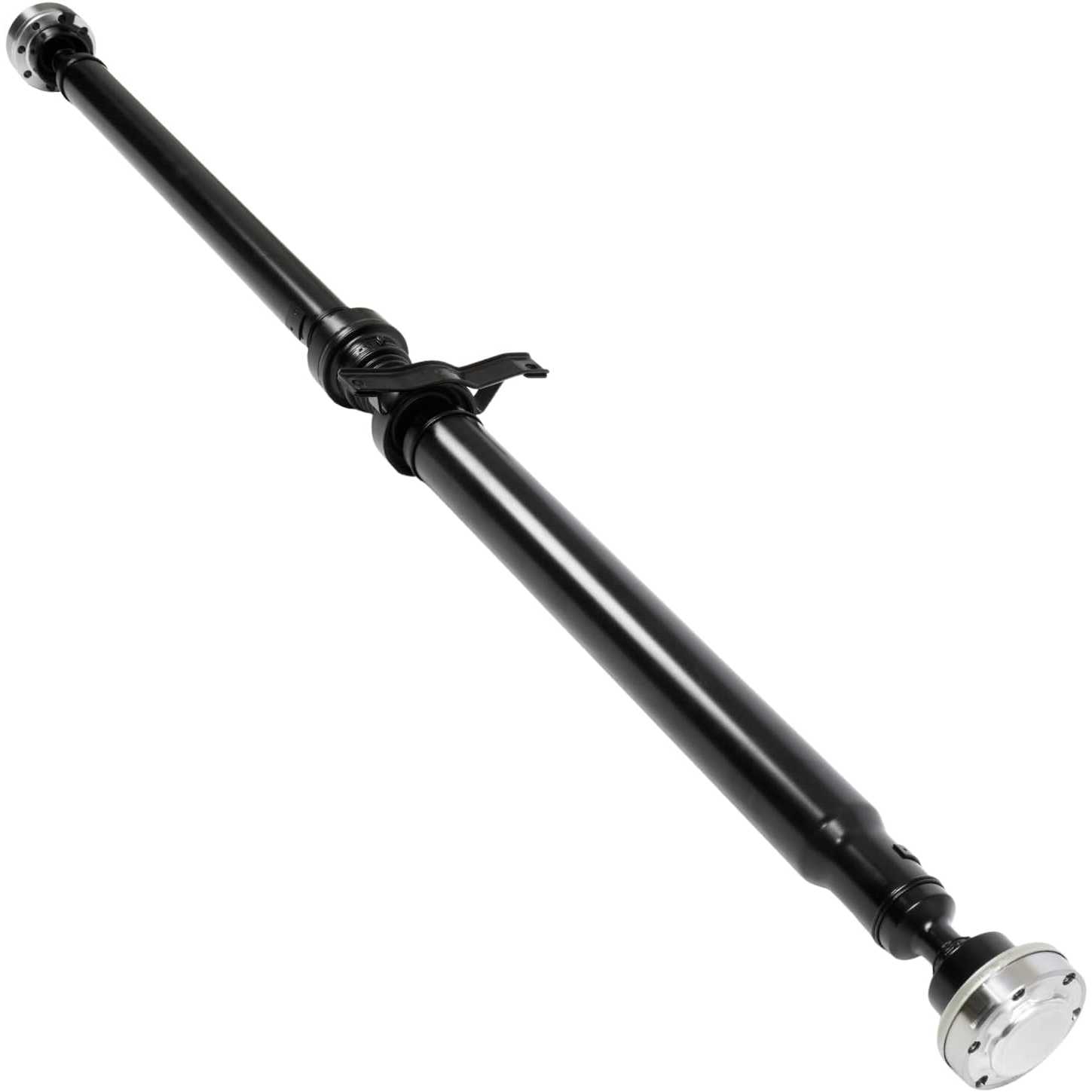

2015-2018 Dodge Charger 3.6L V6 | Rear Drive Shaft | 976211 - PHILTOP

2015-2018 Dodge Charger 3.6L V6 | Rear Drive Shaft | 976211 - PHILTOP

Rear

Factory-Balanced

Corrosion-Resistant

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
98ISDSA1667US

Specifications

Brand
PHILTOP
Mounting Type
Cv Joint Mount
Position
Rear
Fully Extended Length
74.65 in/1896 mm
Fully Compressed Length
73.07 in/1856 mm
Shaft Diameter
Φ76
Items Included
1x Drive Shaft - 976211
Surface Finish
Painted
Two-Piece Design
Yes
Adjustable Length
Yes
Tube Wall Thickness
0.07 in/1.8 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
976211

Highlights

  • (Compatible Vehicles): Fits 2015-2018 Dodge Charger SXT and 2015-2017 Chrysler 300, matching listed applications for this drive shaft assembly.
  • (OE Numbers) Uses OE numbers 976982, 52123627AB, and 52123627AA for direct part matching and easier replacement selection.
  • (Specifications)①Installation Position: Rear Side; ②Extended Shaft Length: 74.65 inch; ③Compressed Shaft Length: 73.07 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ76; ⑥Shaft Wall Thickness: 0.071 inch; ⑦Length is measured end to end across the entire driveshaft
  • (Easy Installation)Stop wrestling with components that don't fit. Our precision-engineered shaft is designed specifically for your model, so installation is smooth and simple. Less time in the garage, more time on the road – and total peace of mind
  • (Quality Assurance) Backed by manufacturer warranty and packaged for shipment as a complete drive shaft assembly for convenient installation.

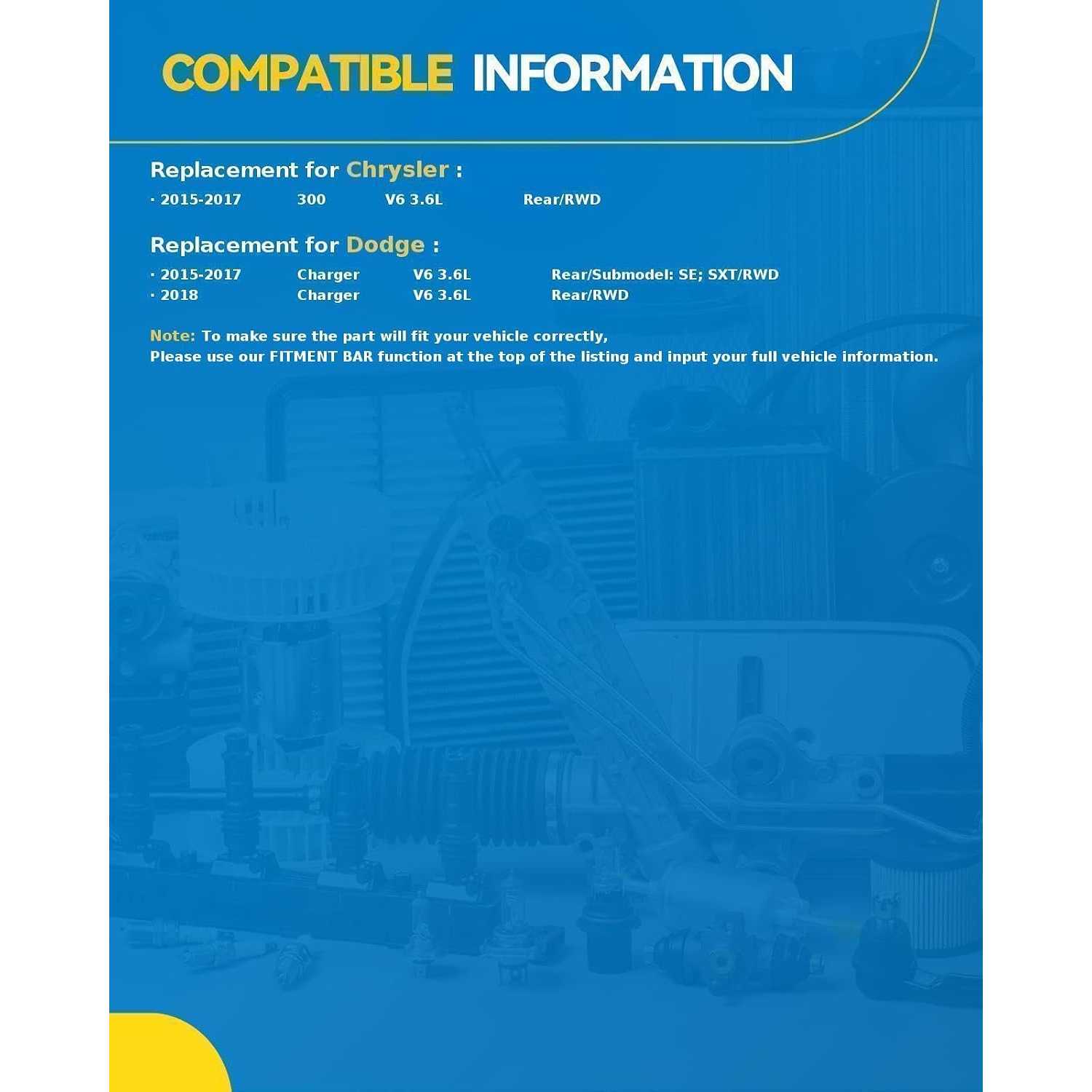

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2015 - 20172015 - 20172015 - 20172015 - 20172015 - 20172015 - 201820182018
MakeChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodge
Model300300300300ChargerChargerChargerCharger
TrimCC PlatinumLimitedSSESXTSXT PlusSXT Plus Leather
Engine3.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V6
Note
w/ Sales Code DR2 (195 mm Rear Axle)
w/ Sales Code DR2 (195 mm Rear Axle)
w/ Sales Code DR2 (195 mm Rear Axle)
w/ Sales Code DR2 (195 mm Rear Axle)
w/ Sales Code DR2 (195 mm Rear Axle)
w/ Sales Code DR2 (195 mm Rear Axle)
--

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

Drive Shaft AssemblyDrive Shaft Assembly
