2015-2019 Dodge Challenger 3.6L V6 | Rear Drive Shaft | 976987 - PHILTOP

2015-2019 Dodge Challenger 3.6L V6 | Rear Drive Shaft | 976987 - PHILTOP

Rear

Factory-Balanced

Corrosion-Resistant

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
23ISDSA1897US

Specifications

Brand
PHILTOP
Mounting Type
Cv Joint to Cv Joint
Position
Rear
Fully Extended Length
71.42 in/1814 mm
Fully Compressed Length
69.06 in/1754 mm
Shaft Diameter
Φ73/63.5
Items Included
1x Drive Shaft - 976987
Surface Finish
Painted
Two-Piece Design
Yes
Adjustable Length
Yes
Tube Wall Thickness
0.08 in/2 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
976987

Highlights

  • (Compatible Vehicles): Fits 2015-2019 Dodge Challenger for direct rear axle replacement and a matched driveline fit.
  • OE Reference: OE numbers 986220,52123980AC,52123980AD,52123980AE,52123980AF,68272626AD,68272626AC,68272626AB,68272626AA,52123980AG.
  • (Specifications)①Installation Position: Rear Side; ②Extended Shaft Length: 71.42 inch; ③Compressed Shaft Length: 69.06 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ73/63.5; ⑥Shaft Wall Thickness: 0.079 inch; ⑦Length is measured end to end across the entire driveshaft
  • (Easy Installation)You get a precision-engineered shaft that bolts directly onto your vehicle with no modifications. You save time and effort on installation. You drive away faster, backed by a design that gives you complete confidence from the start
  • Assurance: Backed by manufacturer warranty and packaged for a straightforward replacement, helping you complete service with confidence.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20192015 - 20192015 - 2018
MakeDodgeDodgeDodge
ModelChallengerChallengerChallenger
TrimGTSXTSXT Plus
Engine3.6L V63.6L V63.6L V6
Note---

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

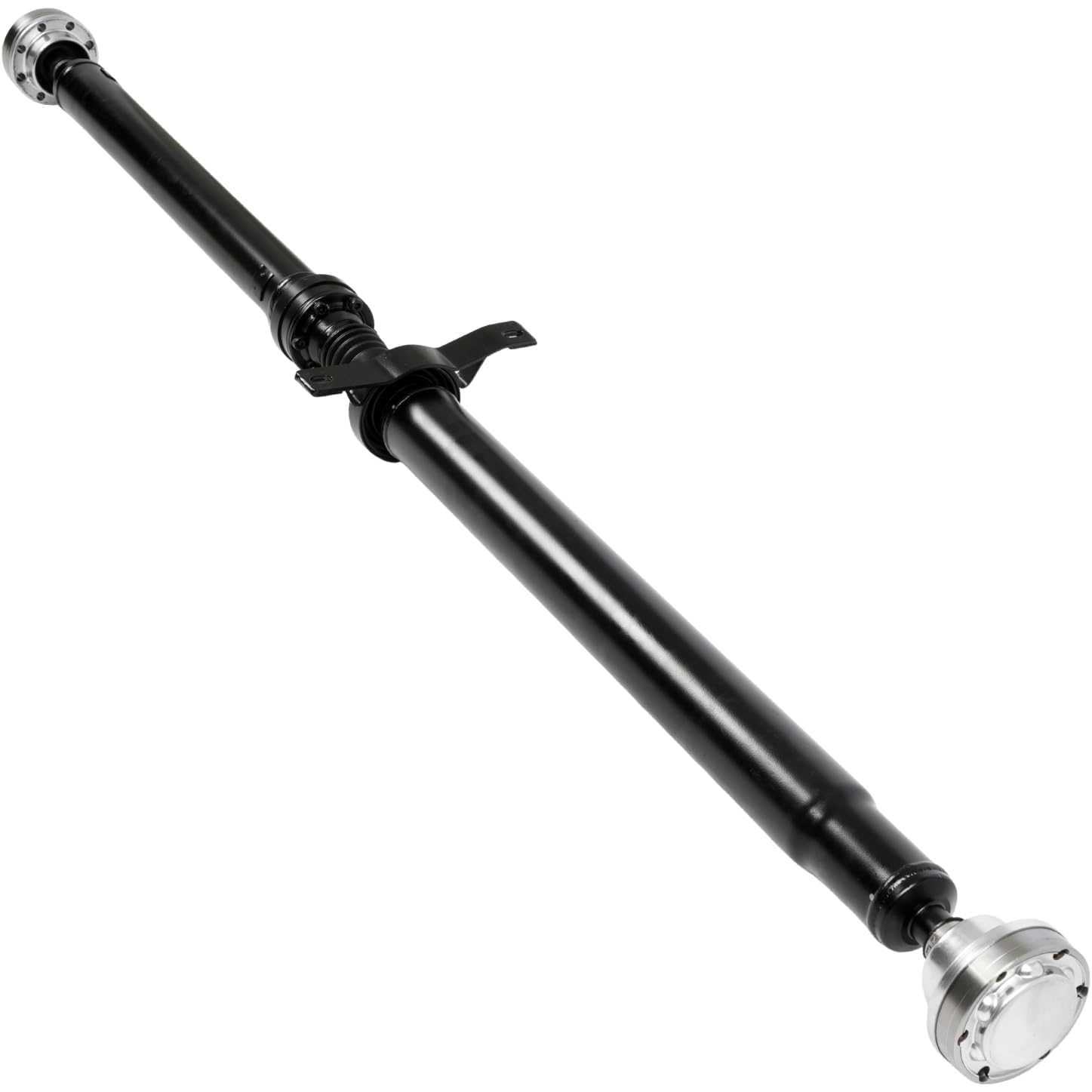

Drive Shaft AssemblyDrive Shaft Assembly
