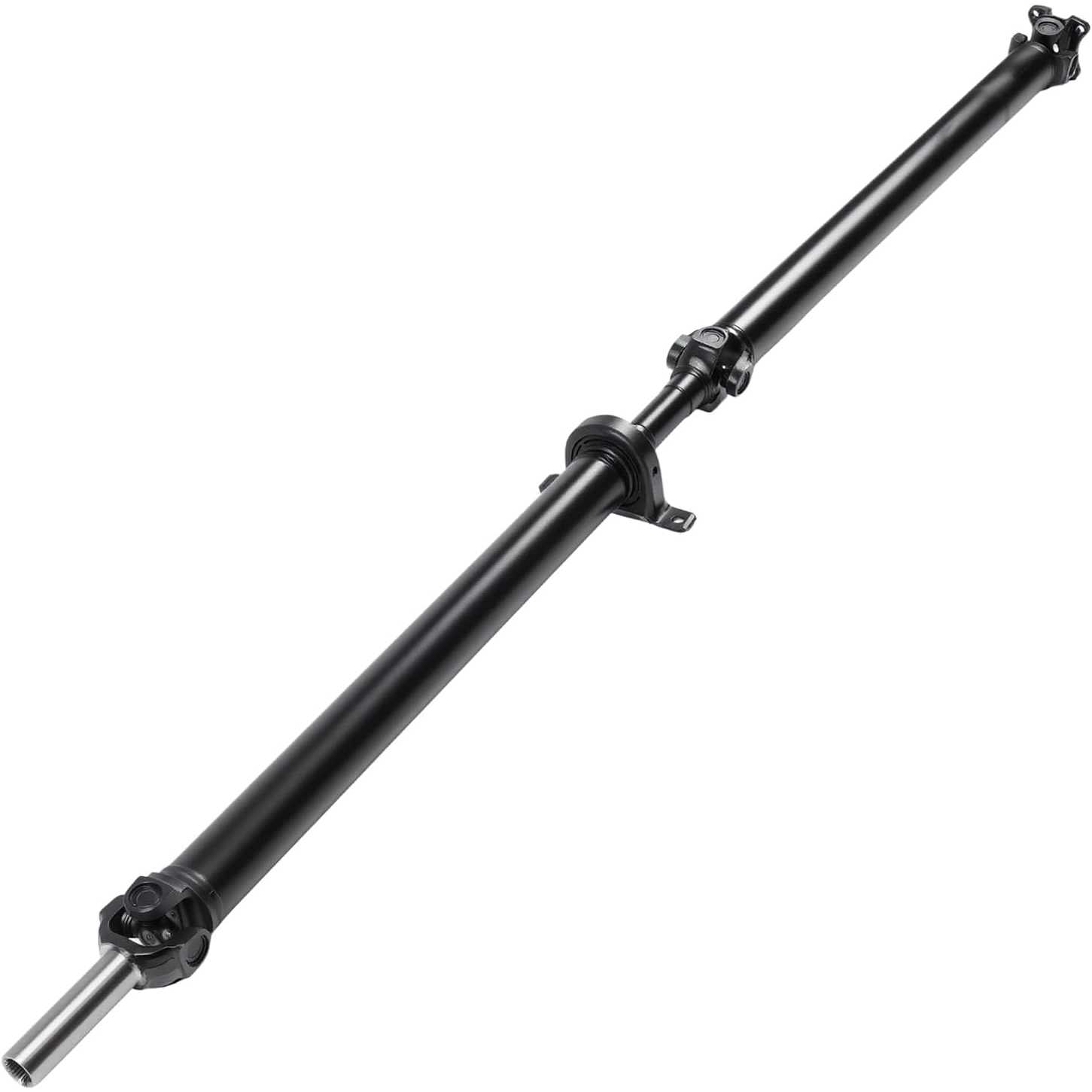

2004-2008 Ford F-150 4.6L V8 | Rear Drive Shaft | 936803 - PHILTOP

2004-2008 Ford F-150 4.6L V8 | Rear Drive Shaft | 936803 - PHILTOP

Rear

Factory-Balanced

Corrosion-Resistant

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
62ISDSA0677US

Specifications

Brand
PHILTOP
Mounting Type
Flange Mount
Position
Rear
Fully Extended Length
94.09 in/2390 mm
Fully Compressed Length
90.75 in/2305 mm
Shaft Diameter
Φ73
Items Included
1x Drive Shaft - 936803
Surface Finish
Painted
Flange Shape
Square
Output Shaft Spline Count
28T
Bolt Hole Quantity
4
Two-Piece Design
Yes
Adjustable Length
Yes
Tube Wall Thickness
0.08 in/2 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
936803

Highlights

  • (Vehicle Fitments)Fits for Ford 2004-2005 F-150 4.6L RWD Automatic(WheelBase:144.7), 2005 F-150 4.6L RWD Manual(WheelBase:144.7), 2005-2008 F-150 4.2L RWD Automatic(WheelBase:144.7), 2006-2008 F-150 4.2/4.6L RWD Automatic(WheelBase:144.5), 2006-2008 F-150 4.6L RWD Manual(WheelBase:144.5) with 8.8 In. Axle; w/10 Bolt Differential Cover
  • (OE Reference)Use the exact OE references 936803,8L3Z4R602E when comparing listings, service records, or application information. Keeping both references together helps identify the intended drive shaft assembly and supports a more informed replacement check. Verify the reference against the vehicle and existing component before purchase.
  • (Specifications)①Installation Position: Rear Side; ②Extended Shaft Length: 94.09 inch; ③Compressed Shaft Length: 90.74 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ73; ⑥Shaft Wall Thickness: 0.079 inch; ⑦Length is measured end to end across the entire driveshaft
  • (High Quality)Factory grease means zero maintenance. Strict QC protocols verify safety and performance on every unit. Precision engineering delivers a perfect fit, smooth operation, and dramatically reduced noise and shudder
  • (Buy with Confidence)Rough roads don't have to mean rough rides. PHILTOP's OEM-design drive shaft replacement prioritizes safety, quality, and comfort, dramatically smoothing your vehicle's performance and making every trip more relaxed and enjoyable

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20082005 - 20082005 - 200820082005 - 20082004 - 20082005 - 20082004 - 2008
MakeFordFordFordFordFordFordFordFord
ModelF-150F-150F-150F-150F-150F-150F-150F-150
TrimFX2STXSTXTHE 60TH ANNIVERSARY EDITIONXLXLXLTXLT
Engine4.6L V84.2L V64.6L V84.6L V84.2L V64.6L V84.2L V64.6L V8
Note
8.8 In. Axle;w/10 Bolt Differential Cover
8.8 In. Axle;w/10 Bolt Differential Cover
8.8 In. Axle;w/10 Bolt Differential Cover
8.8 In. Axle;w/10 Bolt Differential Cover
8.8 In. Axle;w/10 Bolt Differential Cover
8.8 In. Axle;w/10 Bolt Differential Cover
8.8 In. Axle;w/10 Bolt Differential Cover
8.8 In. Axle;w/10 Bolt Differential Cover

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.
