2004-2008 Ford F-150 5.4L V8 | Rear Drive Shaft | 946814 - PHILTOP

2004-2008 Ford F-150 5.4L V8 | Rear Drive Shaft | 946814 - PHILTOP

Rear

Factory-Balanced

Corrosion-Resistant

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
39ISDSA1597US

Specifications

Brand
PHILTOP
Mounting Type
Flange Mount
Position
Rear
Fully Extended Length
67.13 in/1705 mm
Fully Compressed Length
67.13 in/1705 mm
Shaft Diameter
Φ90
Items Included
1x Drive Shaft - 946814
Surface Finish
Painted
Flange Shape
Square
Output Shaft Spline Count
31-2T
Bolt Hole Quantity
4
Two-Piece Design
No
Adjustable Length
No
Tube Wall Thickness
0.12 in/3 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
946814

Highlights

  • (Vehicle Fitments)Fits 2004-2008 F-150 4WD Crew Cab, 2006-2008 Mark LT 4WD
  • (Reference Number)946814,4L3Z4602KA,4L3Z4602KB,5L3Z4602KA
  • (Specifications)①Installation Position: Rear Side; ②Extended Shaft Length: 67.13 inch; ③Compressed Shaft Length: 67.13 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ90; ⑥Shaft Wall Thickness: 0.118 inch; ⑦Length is measured end to end across the entire driveshaft; ⑧Mounting Type: Flange mounting; ⑨Flange Type: Square Shape; ⑩Please verify vehicle compatibility via Philtop’s Confirmed Fit Tool and thoroughly read the product description prior to purchase
  • (Quiet Operation Design) The unit features precision bearings and premium grease, along with closely controlled tolerances. This setup is intended to minimize operational noise while the vehicle is in motion
  • (High Quality) From raw material procurement to final product dispatch, each phase is subject to thorough quality checks. This process is designed to help confirm that every drive shaft aligns with OEM specifications

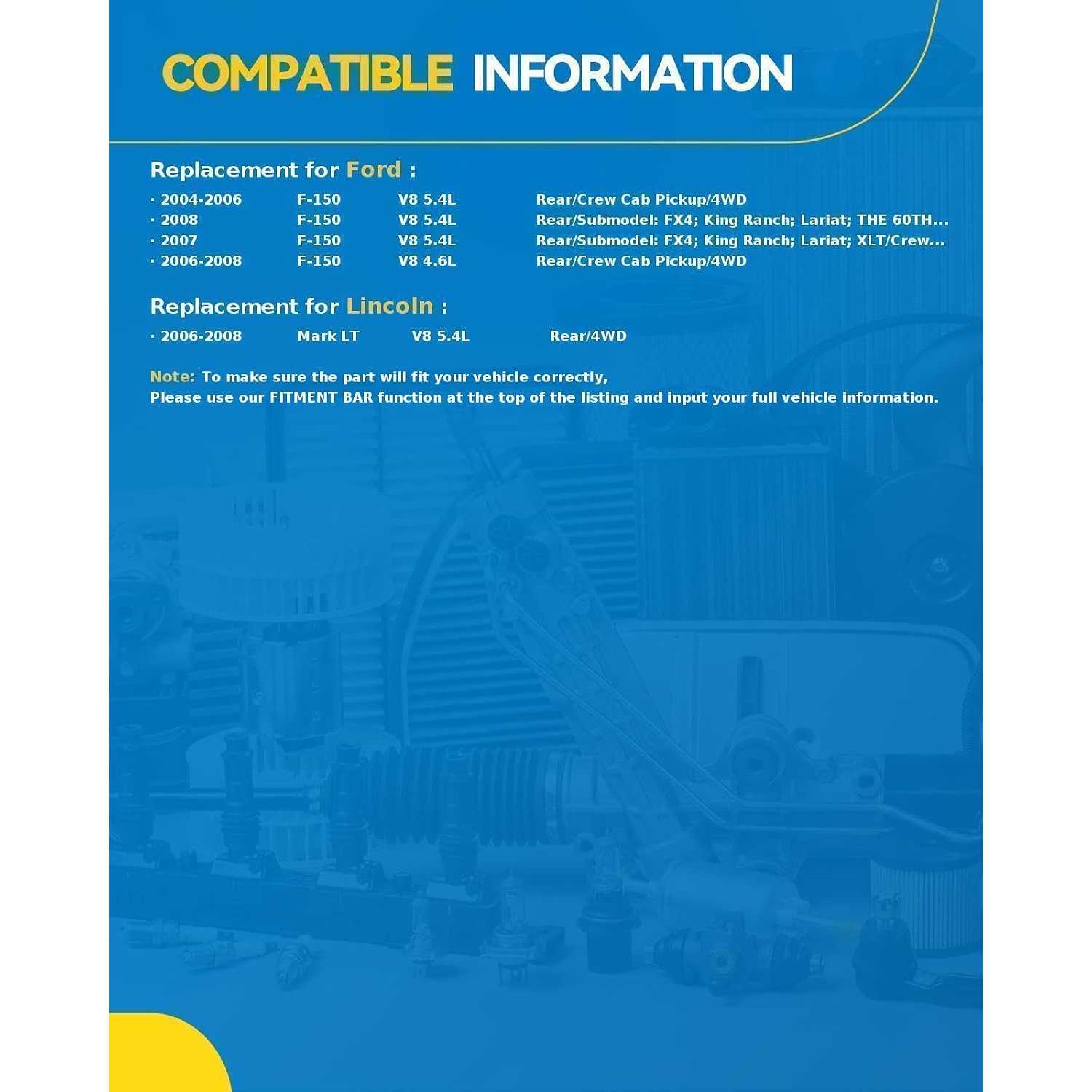

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 20052006 - 200820052006 - 20082004 - 20052006 - 20082008200820082006 - 20082004 - 20052006 - 20082006 - 2008
MakeFordFordFordFordFordFordFordFordFordFordFordFordLincoln
ModelF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150Mark LT
TrimFX4FX4King RanchKing RanchLariatLariatTHE 60TH ANNIVERSARY EDITIONTHE 60TH ANNIVERSARY EDITIONXLXLTXLTXLTBase
Engine5.4L V85.4L V85.4L V85.4L V85.4L V85.4L V84.6L V85.4L V84.6L V84.6L V85.4L V85.4L V85.4L V8
Note-
9.75" Differential
-
9.75" Differential
-
9.75" Differential
9.75" Differential
9.75" Differential
9.75" Differential
9.75" Differential
-
9.75" Differential
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

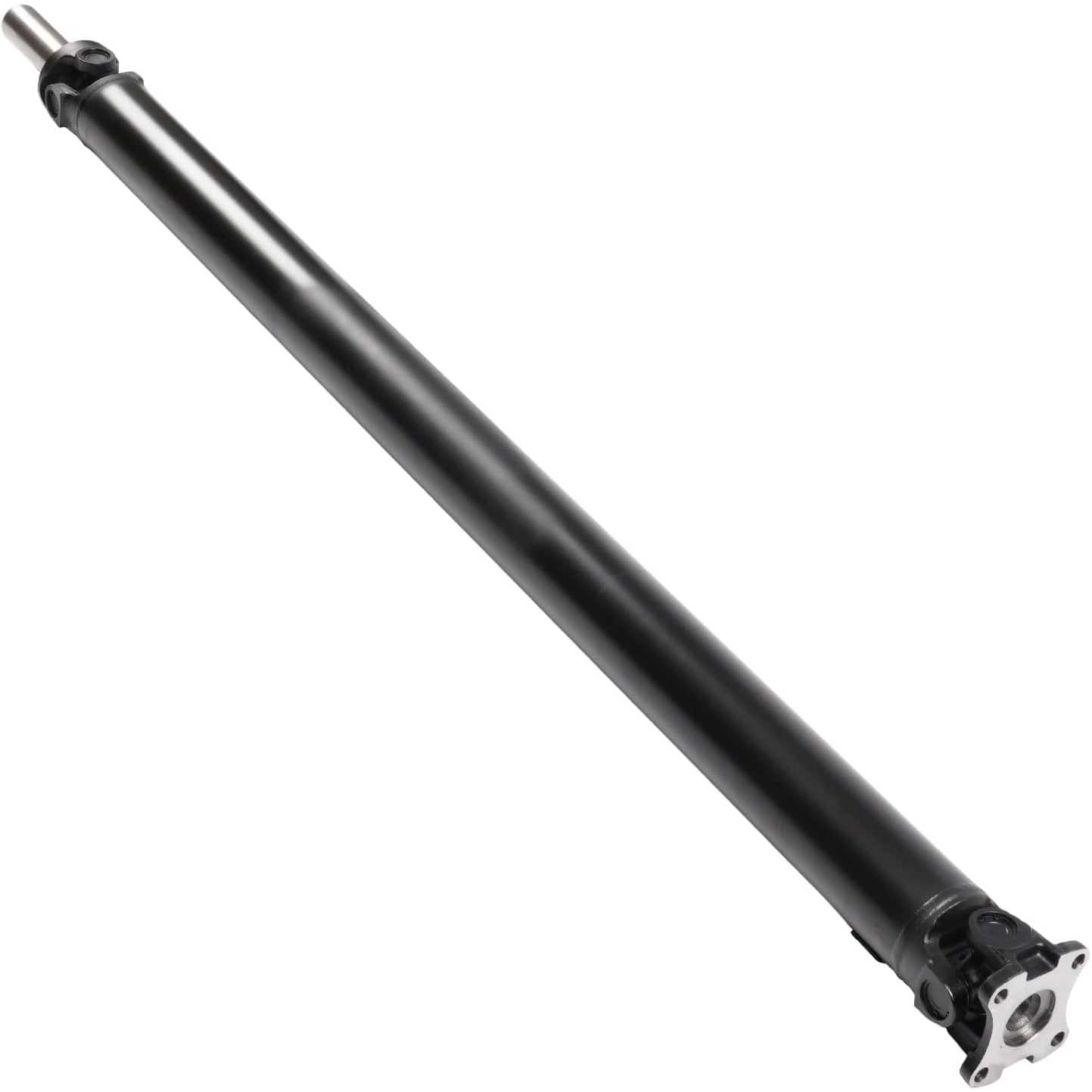

Drive Shaft AssemblyDrive Shaft Assembly
