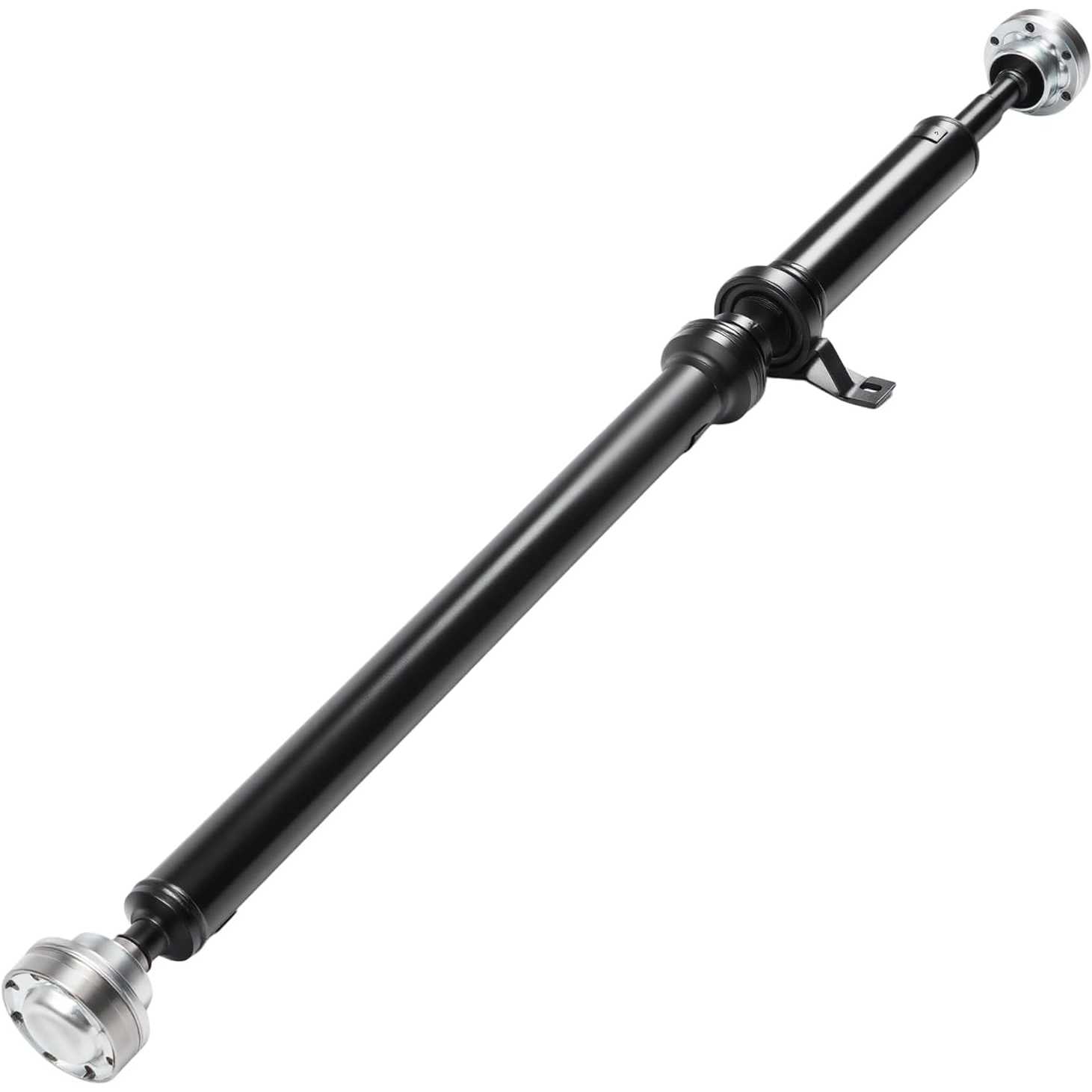

2015-2019 Dodge Charger 3.6L V6 | Rear Drive Shaft | 976986 - PHILTOP

2015-2019 Dodge Charger 3.6L V6 | Rear Drive Shaft | 976986 - PHILTOP

Rear

Factory-Balanced

Corrosion-Resistant

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
79ISDSA1887US

Specifications

Brand
PHILTOP
Mounting Type
Cv Joint to Cv Joint
Position
Rear
Fully Extended Length
62.87 in/1597 mm
Fully Compressed Length
60.79 in/1544 mm
Shaft Diameter
Φ73/63.5
Items Included
1x Drive Shaft - 976986
Surface Finish
Painted
Two-Piece Design
Yes
Adjustable Length
Yes
Tube Wall Thickness
0.08 in/2 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
976986

Highlights

  • (Vehicle Fitments)Fits for Dodge 2015-2019 Charger AWD,for Chrysler 2015-2019 300 AWD.Please verify vehicle compatibility via Philtop's Confirmed Fit Tool and thoroughly read the product description prior to purchase
  • (Reference Number)976986,68212031AB,68261528AB,68212031AD,68212031AC,68261528AD,68261528AC,68261528AA
  • (Specifications)①Installation Position: Rear Side; ②Extended Shaft Length: 62.87 inch; ③Compressed Shaft Length: 60.79 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ73/63.5; ⑥Shaft Wall Thickness: 0.079 inch; ⑦Length is measured end to end across the entire driveshaft; ⑧Mounting Type: Ball Cage + Ball Cage; ⑨Design: Two-Piece; ⑩Adjustable Length for Custom Fit
  • (High Quality)A pre-greased, maintenance-free component built to last. A safety-verified product that meets performance standards. A precision-engineered part that fits perfectly and delivers smooth, quiet operation
  • (Drive with Pleasure)PHILTOP is driven by a passion for safer, more comfortable travel When replacement time comes, our OEM-grade driveshaft ensures your vehicle performs smoothly and responsively on every road

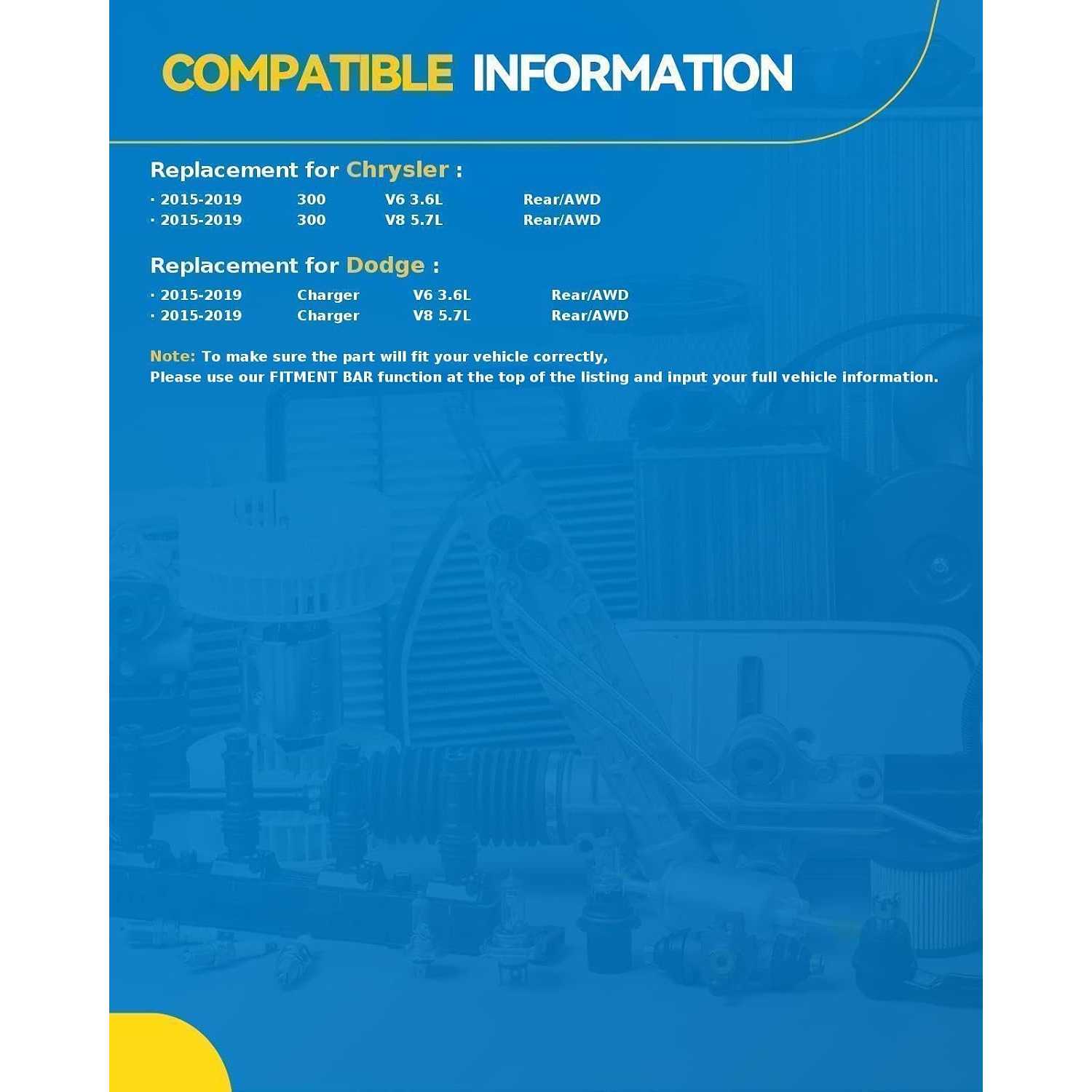

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2015 - 20172015 - 20182015 - 20172015 - 20172015 - 20192015 - 20192015 - 20192018 - 20192018 - 2019201820182015 - 20192015 - 20192015 - 20172015 - 20172019
MakeChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodge
Model300300300300300300300300300ChargerChargerChargerChargerChargerChargerCharger
TrimCCC PlatinumC PlatinumLimitedSSTouringTouring LGTGT PlusPursuitPursuitSESXTSXT
Engine3.6L V65.7L V83.6L V65.7L V83.6L V63.6L V65.7L V83.6L V63.6L V63.6L V63.6L V63.6L V65.7L V83.6L V63.6L V63.6L V6
Note----------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

Drive Shaft AssemblyDrive Shaft Assembly
