2006-2010 Hyundai Sonata 2.4L/3.3L | Rear Left Power Window Regulator | 749322 - PHILTOP

2006-2010 Hyundai Sonata 2.4L/3.3L | Rear Left Power Window Regulator | 749322 - PHILTOP

Upgraded Pulley & Cable

Quiet & Smooth Operation

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
68ISPWR2817US

Specifications

Brand
PHILTOP
Type
Power Window Regulator
Mode
Power, Without Motor
Motor Included
No
Items Included
1x Rear Left Window Regulator - 749-322
Material
Stainless Steel
Quantity
1
Warranty Period
2-Year
Part Number
749322

Highlights

  • [Compatibility]: 2006-2010 Hyundai Sonata
  • [OEM Number]: 749322、834713K501、834713K501、834713K001、834713K001、834713K001AS、834713K500、834713K500
  • [Long Life]: PHILTOP window regulator made of Cold rolled steel sheet, and the rope is designed with thick stainless steel wire and plastic sheath, which is wear-resistant and corrosion-resistant. It has been professionally tested for more than 20,000 times, and the product has a longer service life.

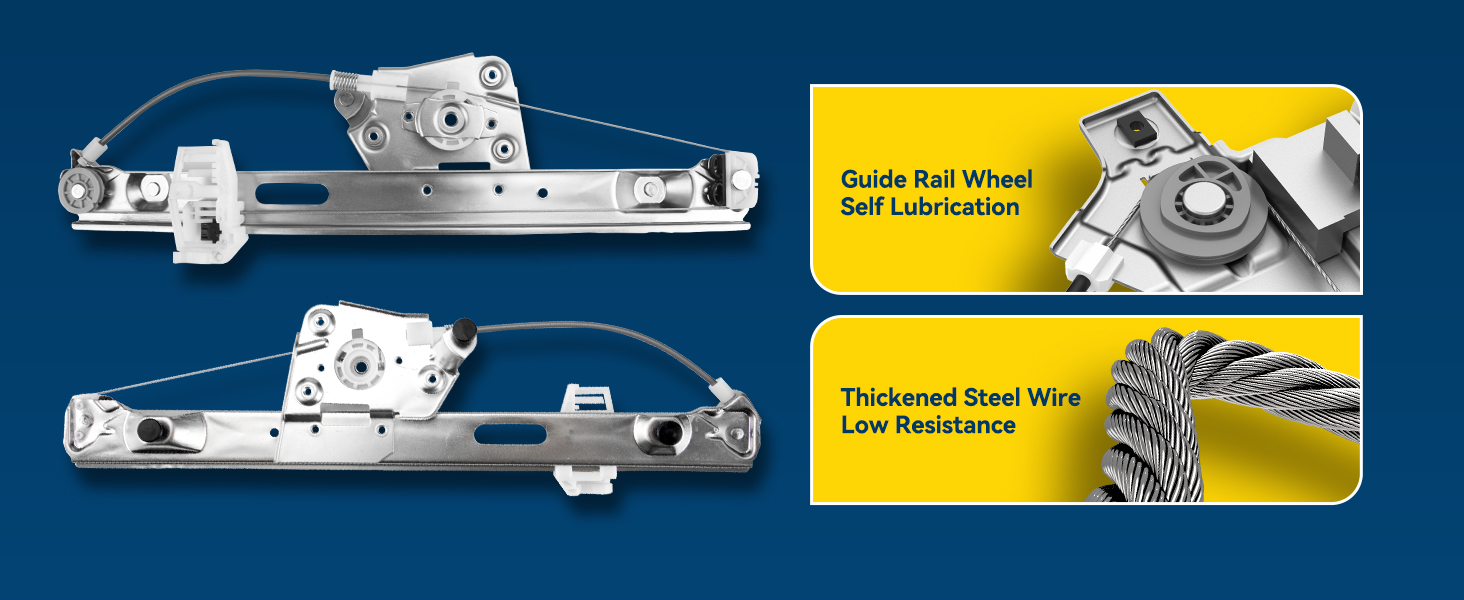

  • [Smooth Operation]: The guide wheels of the window regulator allow the windows to be raised and lowered and positioned smoothly. By cooperating with the guide rails, the windows maintain a stable track when moving up and down, and the sound during operation is less than 60 decibels, achieving smooth and quiet operation.
  • OEM Specifications:PHILTOP Window Regulator are made with original factory data and can directly replace the original window regulator. The packing list is 1x Rear Left Window Regulator - 749-322. If please confirm that the window regulator is suitable for your vehicle before placing an order. you have any questions,please contact us.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20062006 - 201020062008 - 200920062008 - 20102007 - 20102008 - 20102007 - 2010
MakeHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundai
ModelSonataSonataSonataSonataSonataSonataSonataSonataSonata
TrimGLGLSGLSGLSLXLimitedLimitedSESE
Engine2.4L L42.4L L43.3L V63.3L V63.3L V62.4L L43.3L V62.4L L43.3L V6
Note
Power
Power
Power
Power
Power
Power
Power
Power
Power

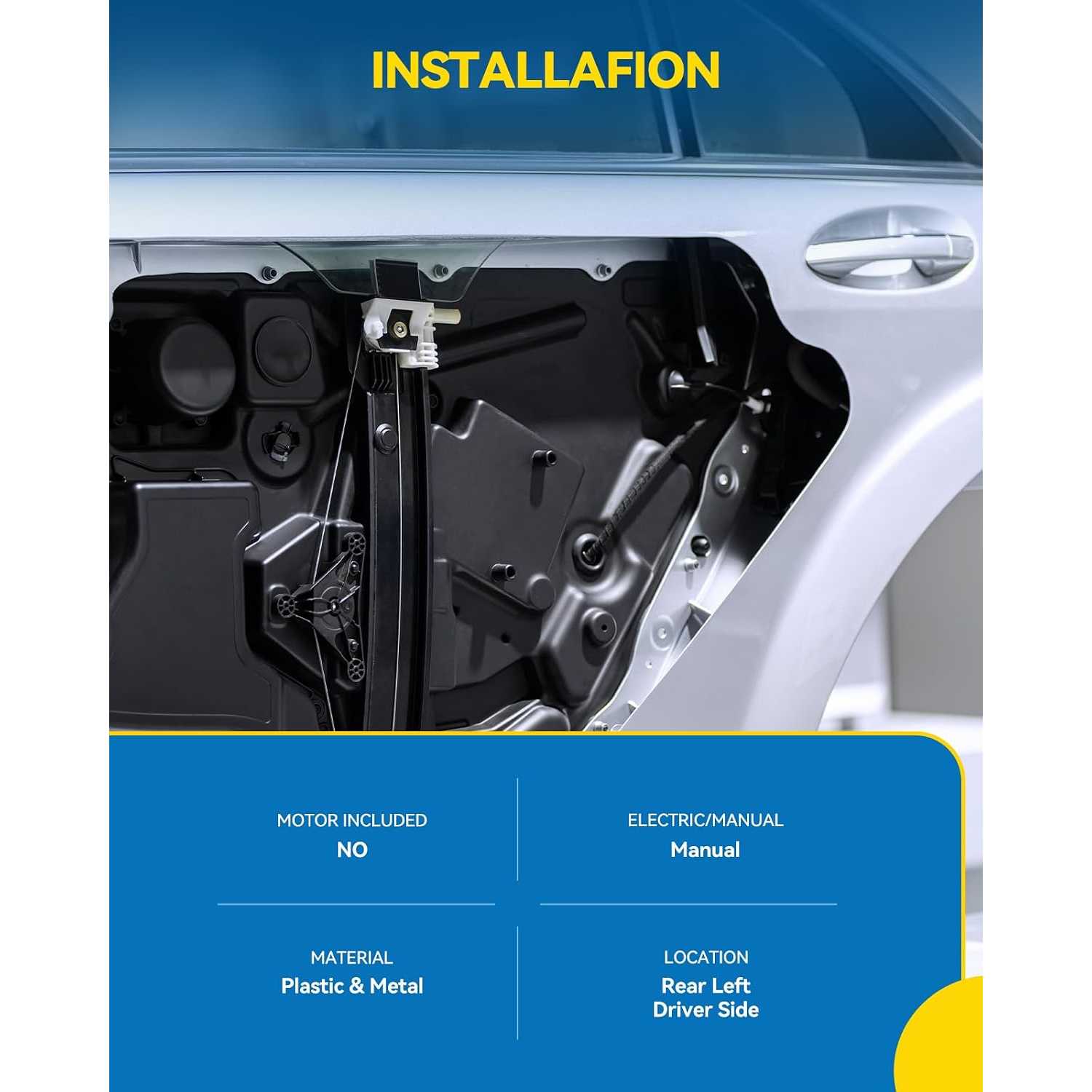

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the door position, regulator type, mounting holes, connector and motor configuration.
  • Check the fuse, switch, wiring and connector before replacing the regulator.
  • Inspect the glass channels, guide rails and mounting brackets for damage or excessive resistance.
  • Disconnect the negative battery cable and securely support the window glass.
  • Confirm whether window initialization is required after installation.

Installation Steps

  • Step-1: Remove the door trim panel and carefully peel back the moisture barrier.
  • Step-2: Move the glass to the mounting-access position and disconnect the motor connector.
  • Step-3: Release the glass from the regulator and secure it in the raised position.
  • Step-4: Remove the old regulator and clean the guide channels and mounting area.
  • Step-5: Install the new regulator, hand-start the fasteners and reconnect the glass.
  • Step-6: Tighten the fasteners to specification and reconnect the motor and battery.
  • Step-7: Test the window before reinstalling the moisture barrier and door panel.

After Installation

  • Run the window fully up and down several times.
  • Check for binding, tilting, vibration or abnormal noise.
  • Confirm the glass seals correctly at the fully closed position.
  • Initialize the one-touch and anti-pinch functions when required.
  • Ensure the wiring and cables are not trapped behind the door panel.

Product Video

Product Description

window regulatorwindow regulator

Reviews

4.5/5

Based on 8 reviews

563%
425%
313%
20%
10%

WD

06/17/2026

Verified buyer

This was the perfect fit and working very nicely 👍

Ashley_RoadTrip_625

03/21/2026

Looks factory quality and the price is amazing. It's a perfect fit for my Sonata and works perfectly. Definitely a great value purchase.

FAQS

No FAQs have been added for this product yet.
