2014-2020 Ford Fusion 2.0L/2.5L/1.5L/1.6L | 2 PC Rear Wheel Bearing | DG9Z1104F/512497 - PHILTOP

2014-2020 Ford Fusion 2.0L/2.5L/1.5L/1.6L | 2 PC Rear Wheel Bearing | DG9Z1104F/512497 - PHILTOP

Triple-Lip Seal

Rear

AISI 52100

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
93ISWBK1967US

Specifications

Brand
PHILTOP
Lug Count
5
Position
Rear
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included
2x Rear Wheel Hub and Bearing Assembly - 512497,Installation Instructions
Bolt Pattern
5 X 4.25
Hub Pilot Diameter
3.14 in
Wheel Stud Size
M12x1.5
Flange Offset
1.89 in/48 mm
Flange Diameter
5.34 in/135.7 mm
Brake Pilot Diameter
2.5 in/63.4 mm
Warranty Period
2-Year
OE Number
DG9Z1104F,DG9Z1104C
Part Number
512497
Quantity
2

Highlights

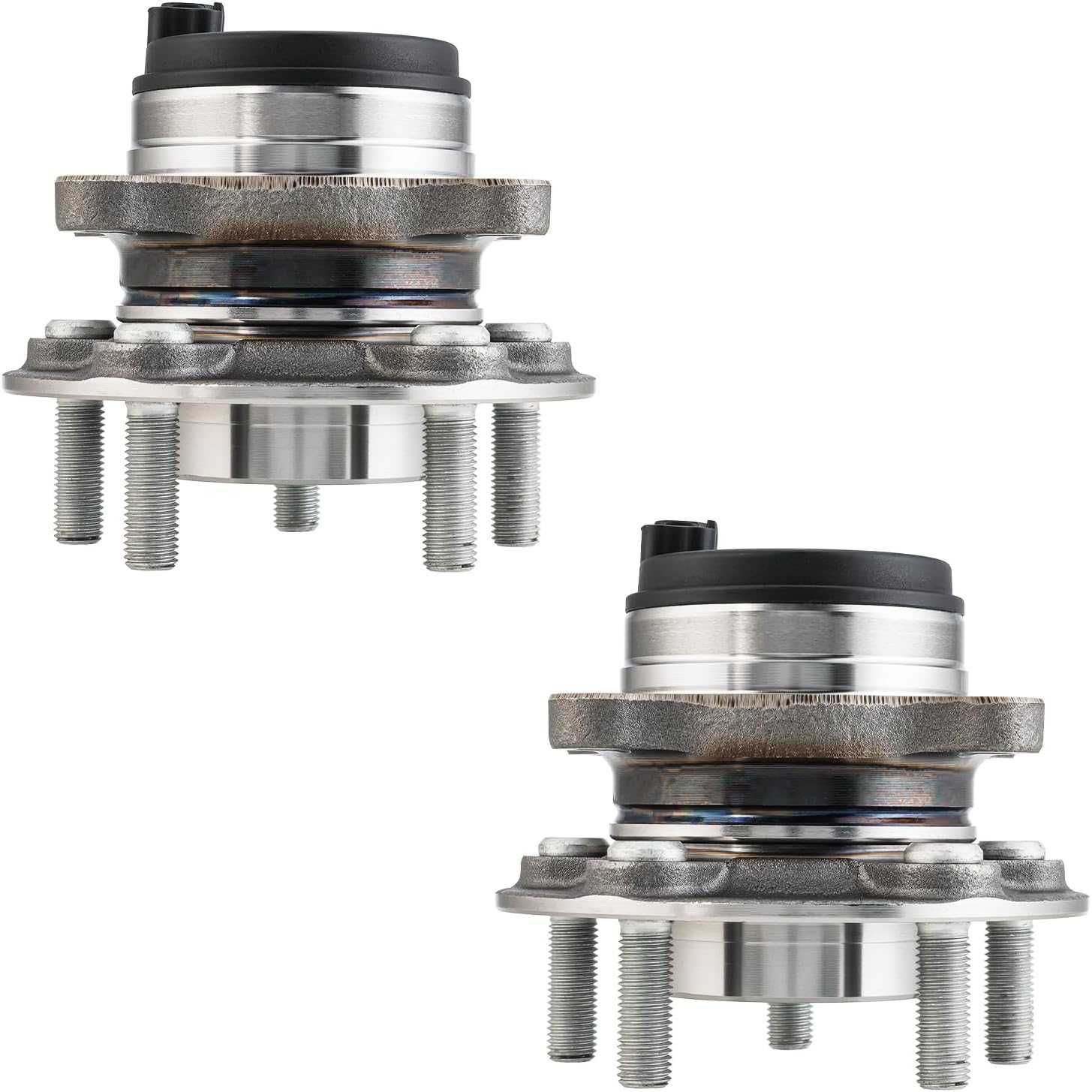

  • [Exact Replacement] 512497 Rear Wheel Bearing and Hub Assembly fit for 2014-2020 Ford Fusion FWD,2014-2016 Lincoln MKZ FWD,2019-2020 Ford Police Responder Hybrid,2019-2020 Ford SSV Plug-In Hybrid
  • [Premium Quality Materials] Rear wheel bearing hub assembly are manufactured with premium quality materials. The outer ring and flange are made of high quality #55 carbon structural steel for high surface hardness and strength.

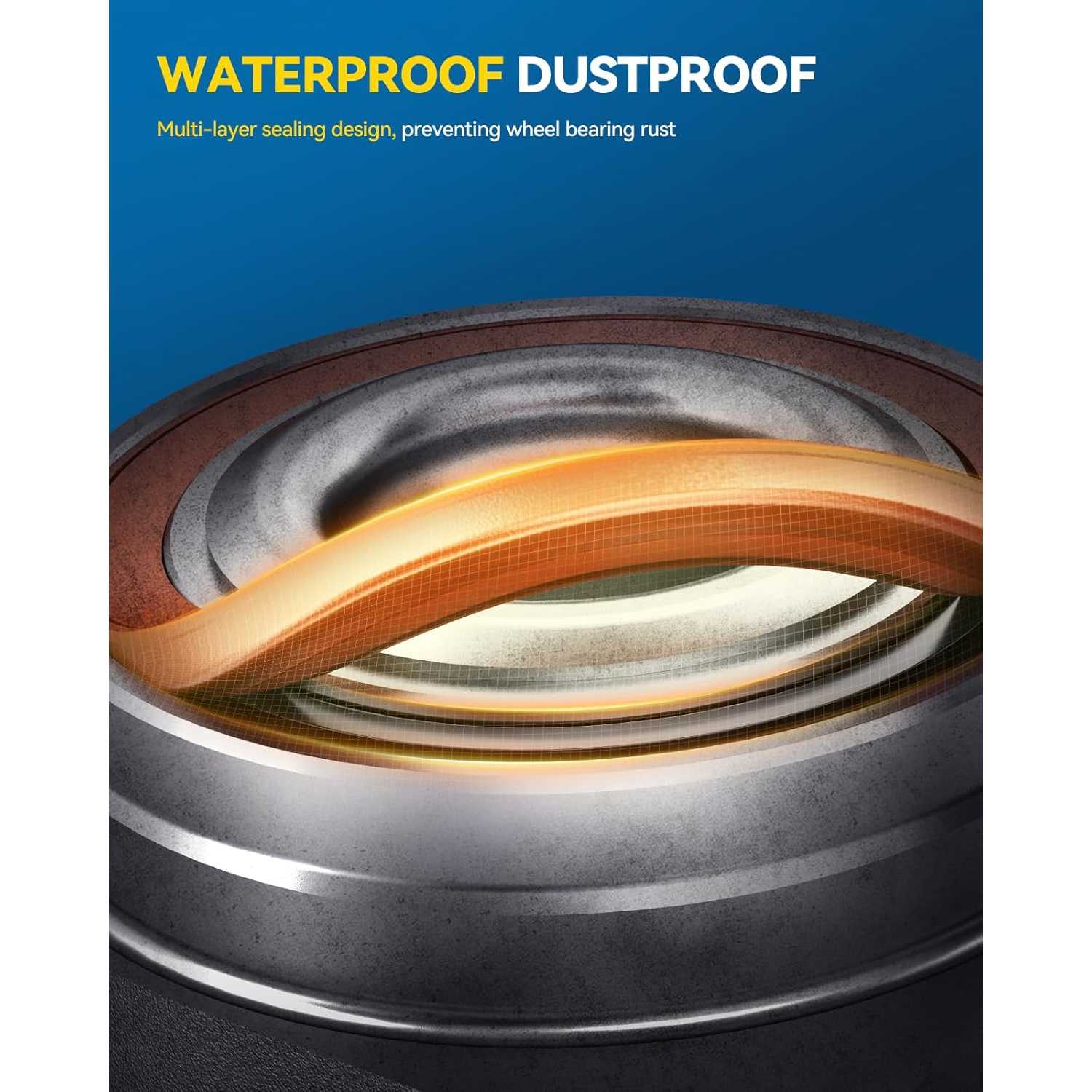

  • [Long lifespan] Brand new wheel hub assemblies and studs with rust and corrosion protected surface finish, making it has longer bearing life. Better seal design and triple oil seal, which lasts and minimizes noise and vibration and vibration also keeping moisture and other contaminants out.
  • [Specification] ①Position: Rear ; ②ABS Included: No; ③Wheel Stud Quantity: 5; ④Flange Bolt Hole Quantity: 4; ⑤Reference Part Number: 512497, BR930874, DG9Z1104F, DG9Z1104C, HA590480, DG9Z1109C. Please refer to the Vehicle menu at the top of the list, select your vehicle's "Year, Make, Model" and click "Confirm" to make sure the wheel bearing fit your car.
  • [Customer Service] PHILTOP Wheel hub assembly meet OE quality standards and come with a 2 year warranty. If you have any questions about our products, please contact us 24 hours a day.

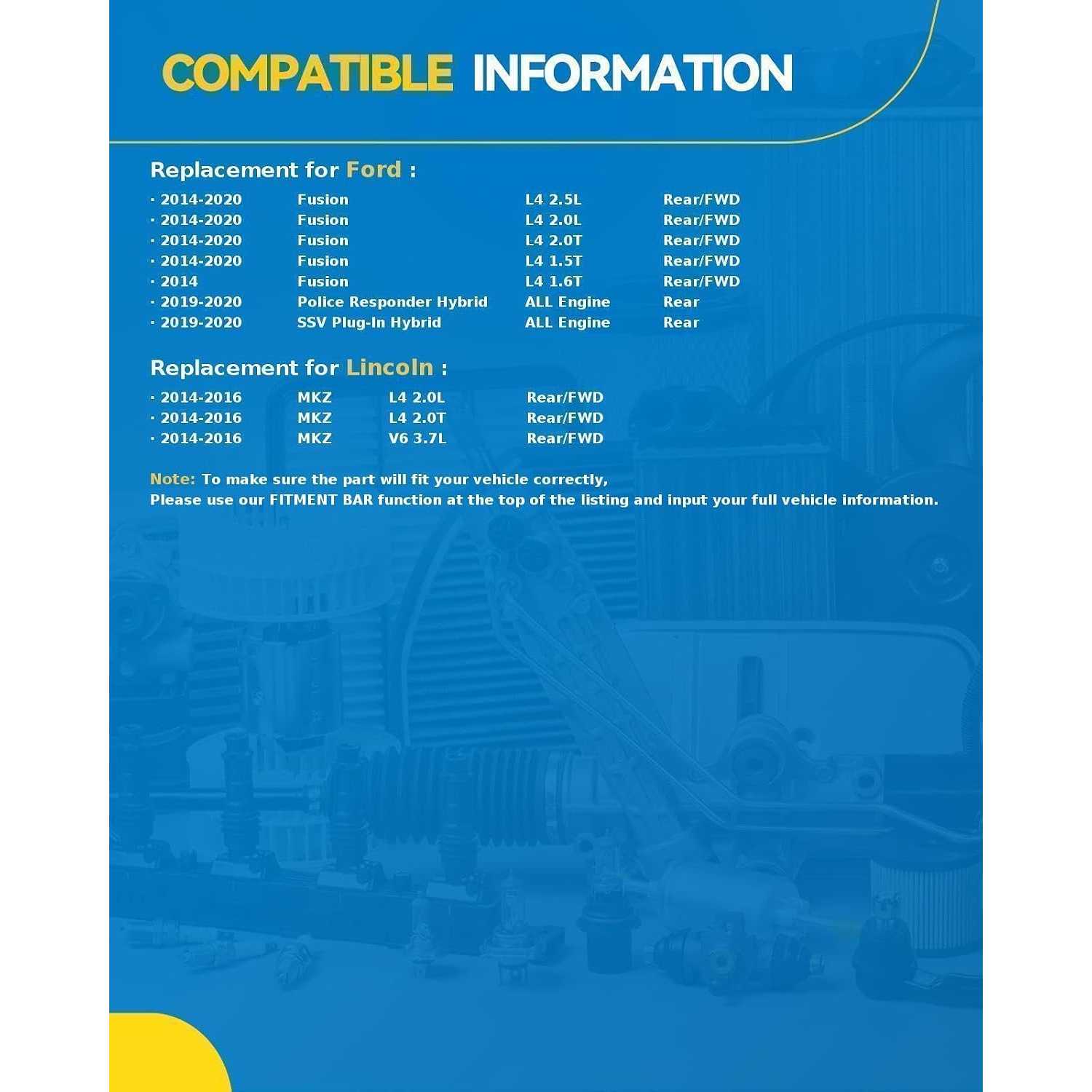

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2017 - 201820142015 - 201820142015 - 20202017 - 20182017 - 201820142015 - 202020142015 - 201820142015 - 2020201420142015 - 202020142015 - 202020142015 - 20202019 - 2020201920192019 - 202020142015 - 202020142015 - 20202019 - 20202019 - 202020142015 - 201620142015 - 20162015 - 20162015 - 20162015 - 201620142015 - 2016
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincoln
ModelFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionPolice Responder HybridSSV Plug-In HybridMKZMKZMKZMKZMKZMKZMKZMKZMKZ
TrimEnergi PlatinumEnergi SEEnergi SEEnergi TitaniumEnergi TitaniumPlatinumPlatinum HybridSSS HybridS HybridSESESESESESESESE HybridSE HybridSELSELSELSEL HybridTitaniumTitaniumTitanium HybridTitanium HybridBaseBaseBaseBaseBaseBaseBlack LabelBlack LabelBlack Label HybridHybridHybrid
Engine2.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.5L L42.5L L42.0L L42.0L L41.5L L41.5L L41.6L L42.0L L42.0L L42.5L L42.5L L42.0L L42.0L L41.5L L42.0L L42.5L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L43.7L V63.7L V62.0L L43.7L V62.0L L42.0L L42.0L L4
Note-
From 01/18/2014
-
From 01/18/2014
---
From 01/18/2014
-
From 01/18/2014
-
From 01/18/2014
-
From 01/18/2014
From 01/18/2014
-
From 01/18/2014
-
From 01/18/2014
-----
From 01/18/2014
-
From 01/18/2014
---
From 01/18/2014
-
From 01/18/2014
----
From 01/18/2014
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.
