Premium Timing Belt

Complete Kit

Water Pump Included

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
47ISCPG1177US

Specifications

Brand
PHILTOP
Items Included

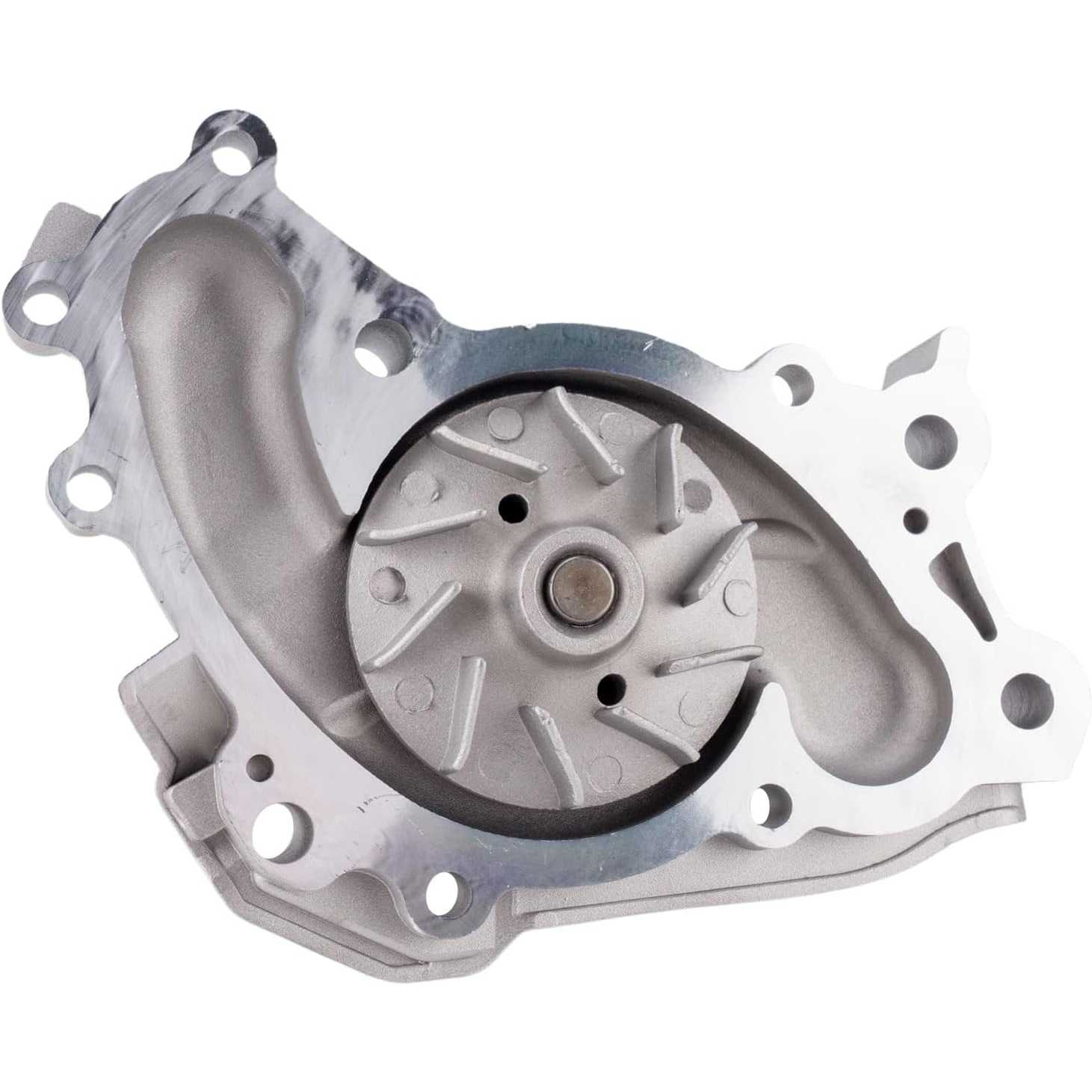

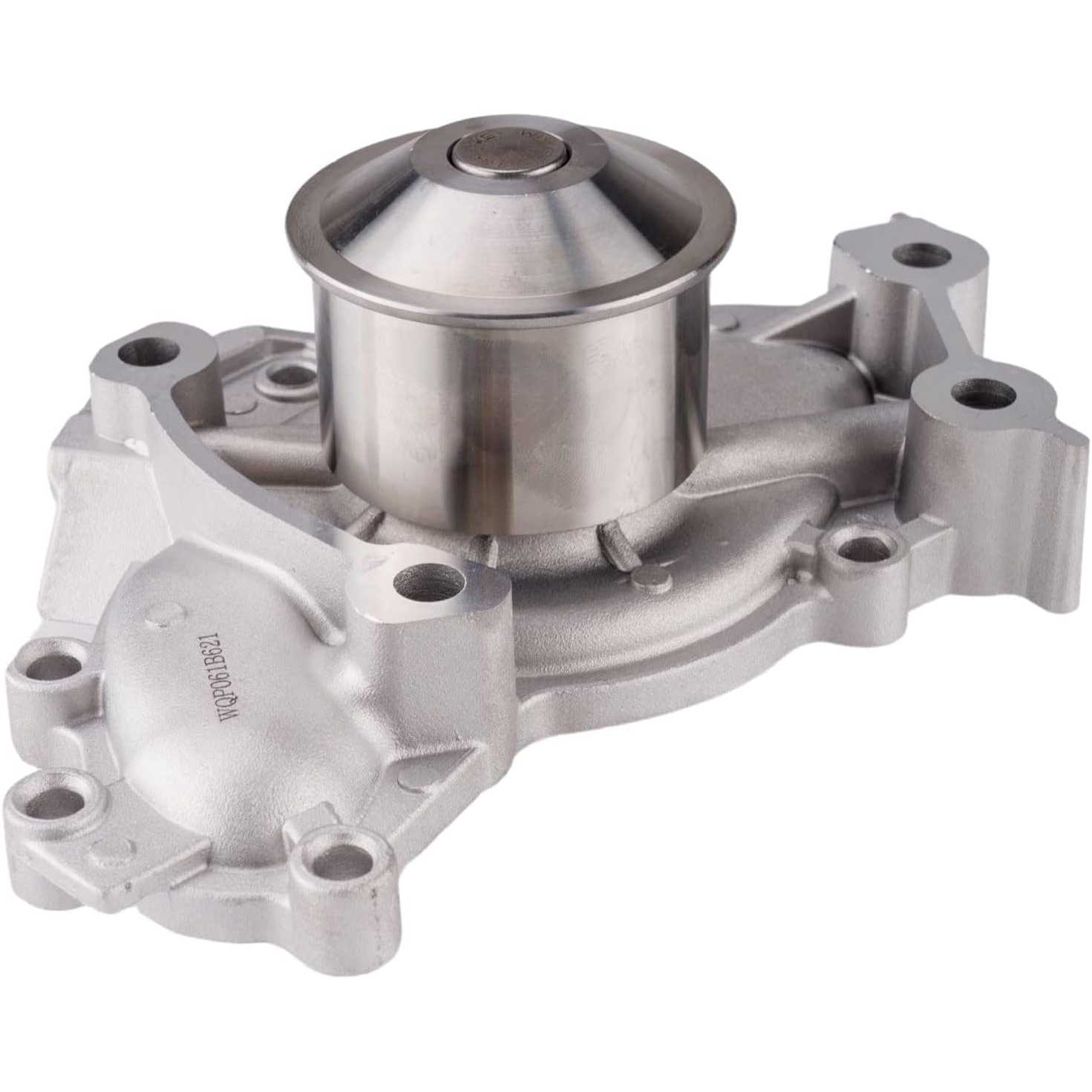

1x Timing Belt (211 Teeth) 3x Seals 1x Water Pumps Gaskets 1x Idlers 2x Tensioners 1x Water Pumps
Material
Aluminum/Iron, Rubber
Universal Fitment
No
Warranty Period
2-Year
Part Number
TKT024,TCKWP257,WPK0002,AWK1221,USTK257,34700257,TKT004,TBK960WP,TB257LK1,PWPK0002,CPK1221,NWPK0002

Highlights

  • Fitment: PHILTOP Timing Chain Kit fits Solara 1999-2003 3.0L, Sienna 1998-2003 3.0L, RX300 1999-2003 3.0L, Camry 1994-2001 3.0L, Avalon 1995-2004 3.0L, ES300 1999-2001 3.0L.
  • Replace Number: Engine Timing Chain Kit for TCKWP257.
  • Customer Support: Timing belt kits quality meets or exceeds OE standards. Any problems with the timing chain kit within 12 months can be returned and exchanged.
  • Characteristic: The timing chain kit has the characteristics of high transmission power, reliability, anti-friction, stable performance, compact structure and so on. All of these benefits make your car run smoothly and correctly.
  • Tips: Before making a purchase, verify that the product is right for your vehicle through fit verification.

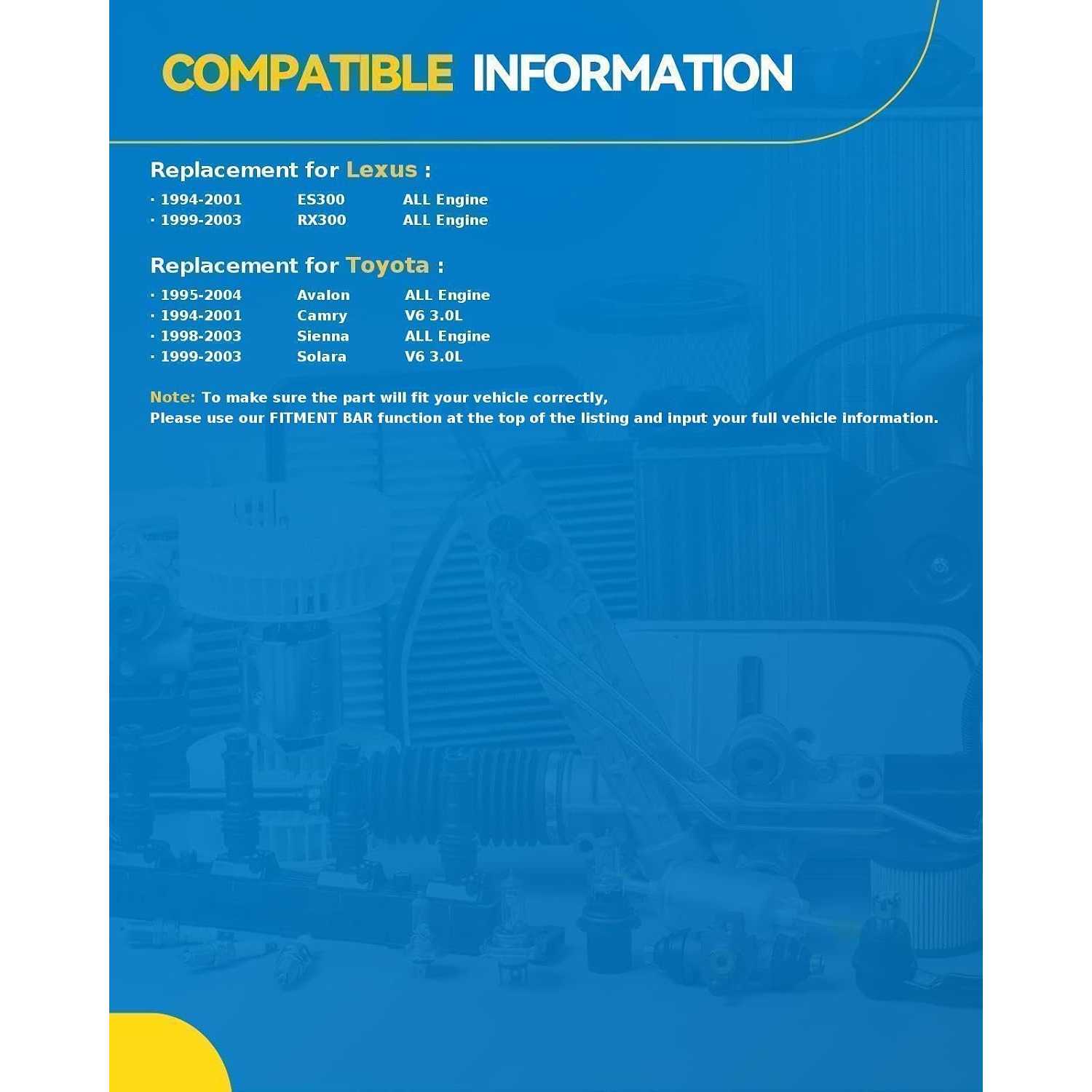

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1994 - 20011999 - 20031995 - 200419951997 - 20041997 - 19981994 - 20011994 - 19961994 - 20011998 - 20031998 - 200319992001 - 20031999 - 20031999 - 2003
MakeLexusLexusToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelES300RX300AvalonAvalonAvalonCamryCamryCamryCamrySiennaSiennaSiennaSiennaSolaraSolara
TrimBaseBaseXLXLSXLSCELESEXLECELEXLEXLESESLE
Engine3.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V6
Note---------------

How to Install?

Checks Before Installation

  • Confirm whether the engine is an interference engine. Set Cylinder No. 1 to compression TDC and verify the timing marks.
  • Confirm the belt tooth count and all kit components match the vehicle.
  • Prepare the required timing tools, torque wrench, angle gauge and locking pins.
  • Photograph the belt routing, timing marks, wiring and vacuum-hose locations before removal.

Installation Steps

  • Step-1: Mark the relationship between the old belt and sprockets before removal. Do not remove the printed marks on the new belt with solvent.
  • Step-2: Do not rotate the crankshaft or camshaft separately while the timing belt is removed.
  • Step-3: Install the belt from the crankshaft to the idler and camshaft, keeping the tensioned side tight.
  • Step-4: Slowly compress and pin a hydraulic tensioner, or align a mechanical tensioner with its indicator mark.
  • Step-5: Replace single-use TTY crankshaft bolts and tighten them using the specified torque-plus-angle procedure.
  • Step-6: Rotate the crankshaft clockwise two complete turns (720°), return it to TDC and recheck every timing mark.

After Installation

  • Manually rotate the engine before installing the accessory belt. Confirm there is no binding.
  • Bleed the cooling system according to the vehicle service manual.
  • Start the engine and check for abnormal noise, belt misalignment or excessive tensioner movement.
  • Scan for timing-related codes such as P0016 and P0011.
  • Recheck torque and inspect for leaks after the first 50–100 miles.

Product Description

11

Reviews

4.4/5

Based on 5 reviews

560%
420%
320%
20%
10%

Jason_Trucks_992

06/20/2026

This timing belt kit was surprisingly easy to install, everything lined up perfectly. It feels just as solid as the original equipment. Definitely a great replacement option.

DIY_Karen_34

03/30/2026

Installation was straightforward, no major issues at all. Everything fit perfectly and the kit seemed comparable to higher-priced options I've seen. Glad I went with this one.

FAQS

No FAQs have been added for this product yet.
