2001-2005 Honda Civic 1.7L | Timing Belt w/Water Pump | 14400-PMM-A02 - PHILTOP

2001-2005 Honda Civic 1.7L | Timing Belt w/Water Pump | 14400-PMM-A02 - PHILTOP

Premium Timing Belt

Complete Kit

Water Pump Included

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
90ISCPG1087US

Specifications

Brand
PHILTOP
Items Included

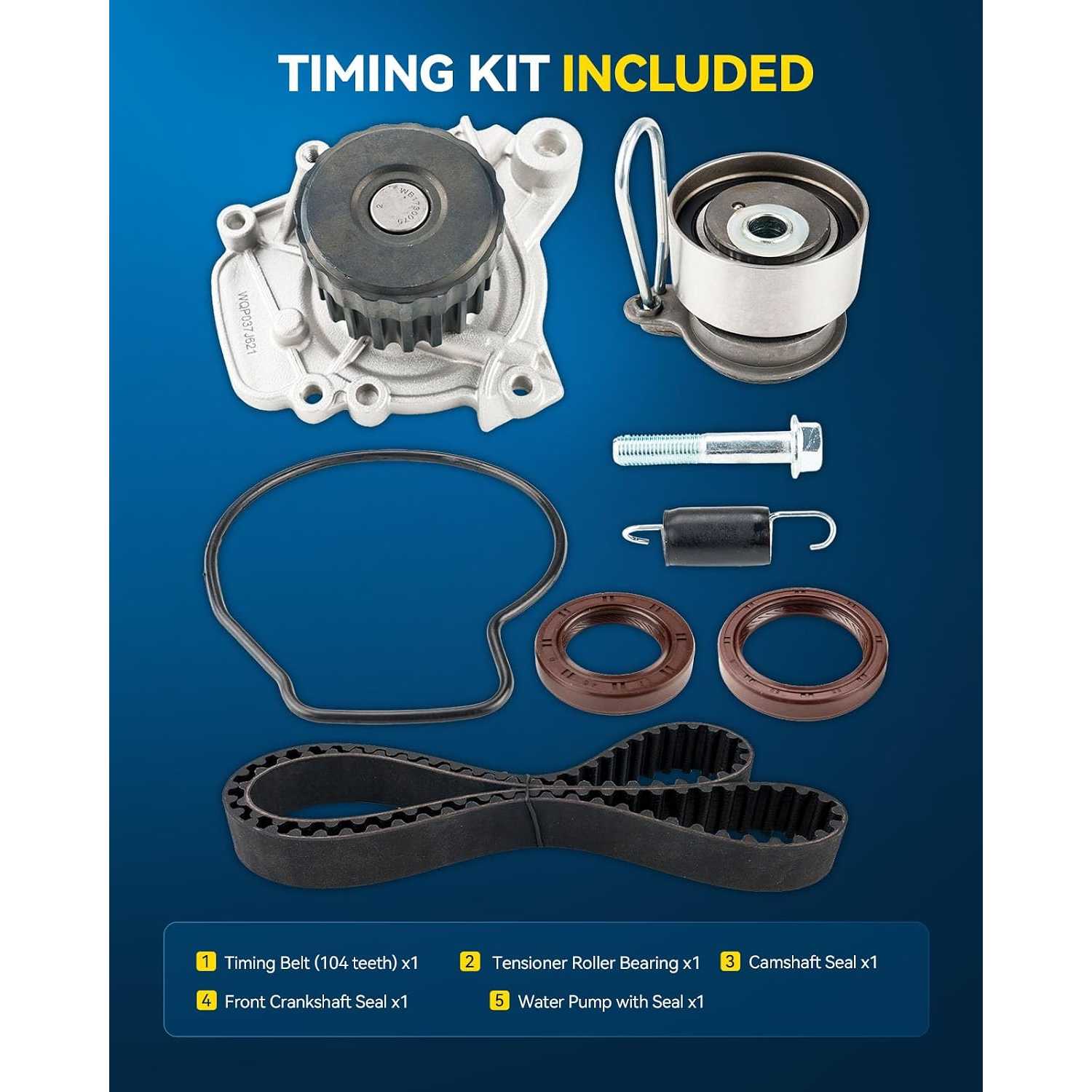

1x Timing Belt (104 Teeth) 1x Tensioner Roller Bearing 1x Camshaft Seal 1x Front Crankshaft Seal 1x Water Pump with Seal
Material
Aluminum/Iron, Rubber
Universal Fitment
No
Warranty Period
2-Year

Highlights

  • [Vehicle Fitment]: PHILTOP Timing Belt Kitwith Compatible with Honda Civic 2002-2005 1.7L, Civic 2001
  • [Kit Contents]: Kit includes OE matched components: 1x Timing Belt (104 teeth), 1x Tensioner Roller Bearing, 1x Camshaft Seal, 1x Front Crankshaft Seal, 1x Water Pump with Seal - all packed in one convenient box, ready to install
  • [Part number]: 14400-PMM-A02, 14520-PLC-335, 19200-PLM-A01, TS26312, ITM312
  • [High-Quality Materials] : PHILTOP Timing Belt Kit Crafted from top-tier materials & built to OEM specs. High-strength steel chains + heat-resistant guides cut stretch/noise, boosting engine lifespan. Rigorously tested for 100K+ mile reliability
  • [365-Day Quality Guarantee]: Free replacement available if quality issues occur—just contact us. For any questions, reach out first: we reply within 24 working hours

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year200120022003 - 20042005200120022003 - 20052001200220032004200520012002200320042005200120022003 - 2004200520042005
MakeHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHonda
ModelCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivic
TrimDXDXDXDXEXEXEXGXGXGXGXGXHXHXHXHXHXLXLXLXLXValue PackageValue Package
Engine1.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L41.7L L4
Note
16 Valve, EngDesign Code D17A1
16 Valve, VTEC, EngDesign Code D17A1
16 Valve, EngDesign Code D17A7
16 Valve, EngDesign Code D17A1
16 Valve, EngDesign Code D17A1
16 Valve, EngDesign Code D17A7
16 Valve, VTEC, EngDesign Code D17A2
16 Valve, EngDesign Code D17A1
16 Valve, EngDesign Code D17A7
16 Valve, VTEC-E, EngDesign Code D17A6
16 Valve, VTEC, EngDesign Code D17A1
16 Valve, VTEC, EngDesign Code D17A2
16 Valve, EngDesign Code D17A1
16 Valve, EngDesign Code D17A7
16 Valve, VTEC-E, EngDesign Code D17A6
16 Valve, VTEC, EngDesign Code D17A6
16 Valve, VTEC-E, EngDesign Code D17A6
16 Valve, EngDesign Code D17A1
16 Valve, EngDesign Code D17A7
16 Valve, VTEC, EngDesign Code D17A1
16 Valve, EngDesign Code D17A1
16 Valve, VTEC, EngDesign Code D17A1
16 Valve, EngDesign Code D17A7

How to Install?

Checks Before Installation

  • Confirm whether the engine is an interference engine. Set Cylinder No. 1 to compression TDC and verify the timing marks.
  • Confirm the belt tooth count and all kit components match the vehicle.
  • Prepare the required timing tools, torque wrench, angle gauge and locking pins.
  • Photograph the belt routing, timing marks, wiring and vacuum-hose locations before removal.

Installation Steps

  • Step-1: Mark the relationship between the old belt and sprockets before removal. Do not remove the printed marks on the new belt with solvent.
  • Step-2: Do not rotate the crankshaft or camshaft separately while the timing belt is removed.
  • Step-3: Install the belt from the crankshaft to the idler and camshaft, keeping the tensioned side tight.
  • Step-4: Slowly compress and pin a hydraulic tensioner, or align a mechanical tensioner with its indicator mark.
  • Step-5: Replace single-use TTY crankshaft bolts and tighten them using the specified torque-plus-angle procedure.
  • Step-6: Rotate the crankshaft clockwise two complete turns (720°), return it to TDC and recheck every timing mark.

After Installation

  • Manually rotate the engine before installing the accessory belt. Confirm there is no binding.
  • Bleed the cooling system according to the vehicle service manual.
  • Start the engine and check for abnormal noise, belt misalignment or excessive tensioner movement.
  • Scan for timing-related codes such as P0016 and P0011.
  • Recheck torque and inspect for leaks after the first 50–100 miles.
