Premium Timing Chain

Complete Kit

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
13ISETC1087US

Specifications

Brand
PHILTOP
Items Included

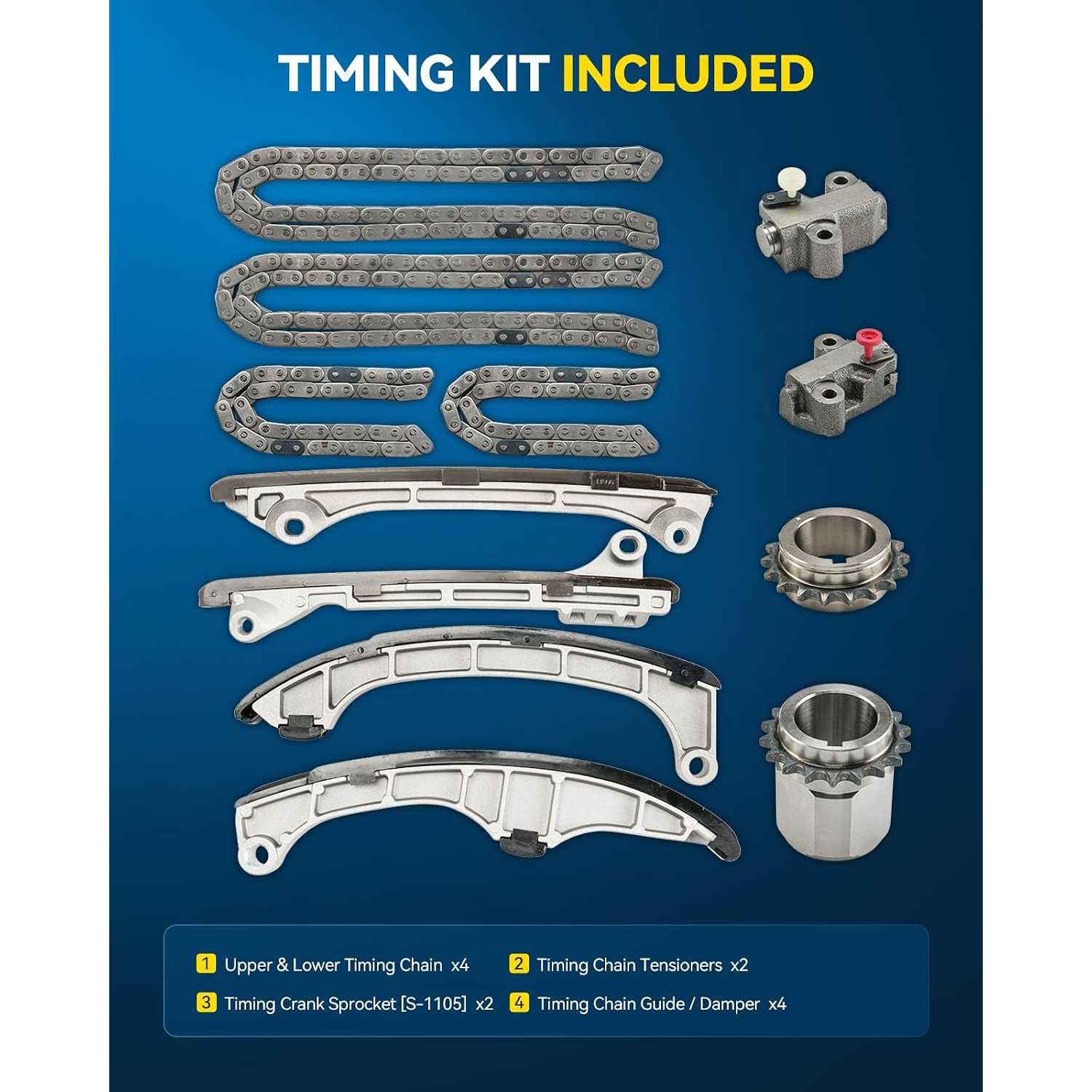

4x Upper & Lower Timing Chain 2x Timing Chain Tensioners 2x Timing Crank Sprocket [S-1105] 4x Timing Chain Guide / Damper
Number of Pieces
12
Material
Aluminum/Iron
Universal Fitment
No
Warranty Period
2-Year

Highlights

  • [Vehicle Fitment]: PHILTOP Engine Timing Chain Kit Compatible with Toyota Tundra 2010-2014 4.6L, Tundra 2010-2014 5.7L, Tundra 2015-2019, Sequoia 2010-2012, fits for Lexus GX460 2010-2020, LS460 2009-2017, LS600h 2009-2016, RC F 2015-2020, IS F 2010-2014, GS F 2016-2020, GS460 2009-2011
  • [Kit Contents]: Kit includes OE matched components: 2x Timing Chain [C-951], 3x Oil Pump Chain & Sprocket & Tensioner, 2x Timing Chain Tensioner, 4x Right & Left Timing Chain Guide / Damper [9-6041, 9-6042], 2x Timing Crankshaft & Camshaft Sprocket, 4x Timing Chain Guide Bolt - all packed in one convenient box, ready to install
  • [Part number]: 135060S020, 1350638030, 1350738030, S-1105, S1105, 1352238030, 1352238020, S-1103, S1103, 1352138030, 1352138020, 1354038020, 135400S010, 135400S020, 135400S021, 135400S022, 1354038041, 1354038060, 135500S010, 135500S011, 1355038010, 1355038020, 1356038020, 1355938030, 1356138060, 1355938040, 1356138070, C16106, 1082, 95959, 95960, 95961, 95962
  • [High-Quality Materials] : PHILTOP Timing Chain Kit Crafted from top-tier materials & built to OEM specs. High-strength steel chains + heat-resistant guides cut stretch/noise, boosting engine lifespan. Rigorously tested for 100K+ mile reliability
  • [365-Day Quality Guarantee]: Free replacement available if quality issues occur—just contact us. For any questions, reach out first: we reply within 24 working hours

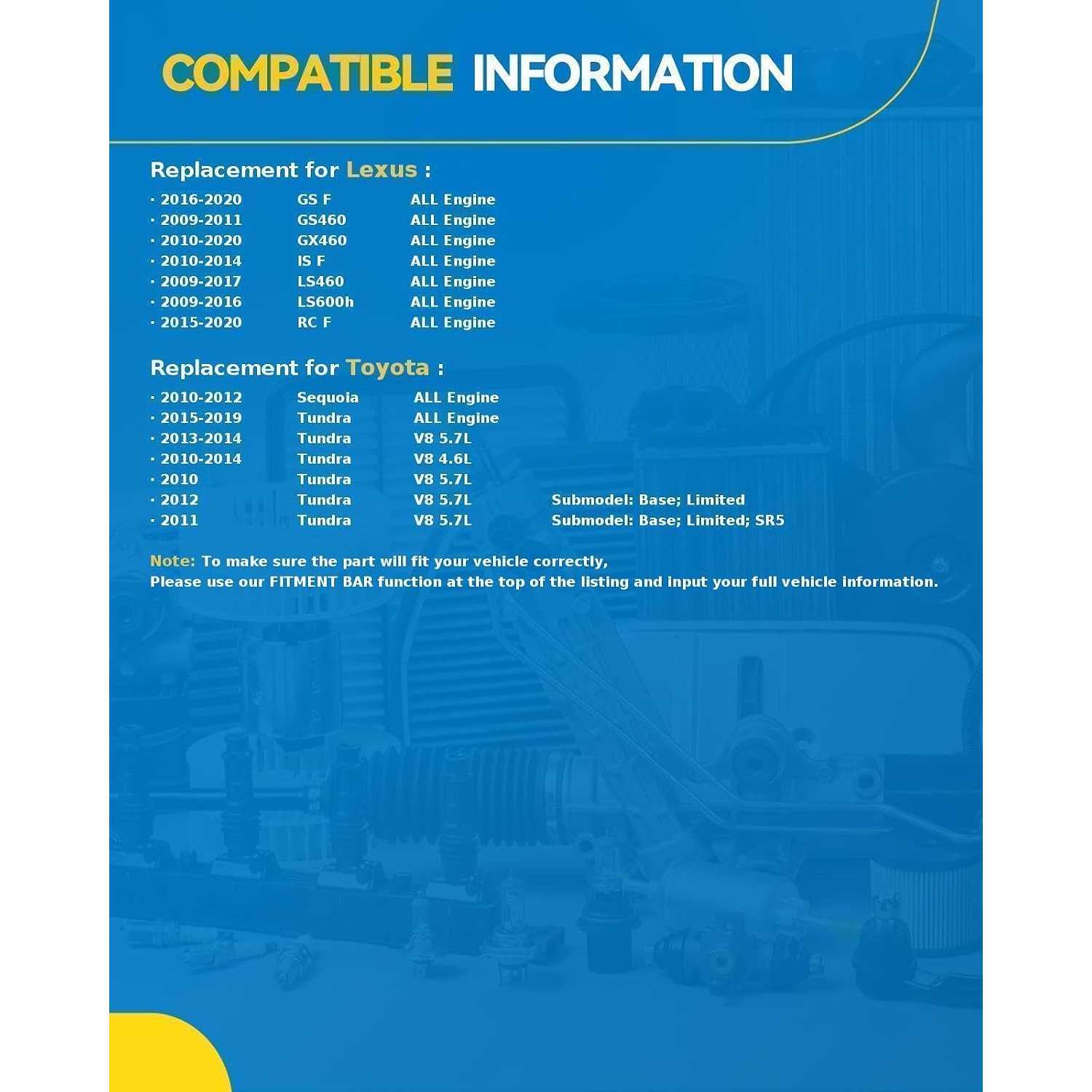

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2016 - 20202009 - 20112010 - 20202014 - 20202010 - 20202010 - 20142009 - 20172013 - 20172009 - 20172009 - 20162015 - 202020202010 - 20122010 - 20122010 - 20122010 - 20122014 - 20192010 - 20132010 - 201320102010 - 2019201020102013 - 20192014 - 20192014 - 20192010 - 20112014 - 20192010 - 20112014 - 20192015 - 20172019
MakeLexusLexusLexusLexusLexusLexusLexusLexusLexusLexusLexusLexusToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelGS FGS460GX460GX460GX460IS FLS460LS460LS460LS600hRC FRC FSequoiaSequoiaSequoiaSequoiaTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundra
TrimBaseBaseBaseLuxuryPremiumBaseBaseF SportLLBaseTrack EditionLimitedPlatinumSR5SR51794 EditionBaseBaseLimitedLimitedPlatinumPlatinumPlatinumSRSRSR5SR5SR5SR5TRD ProTRD Pro
Engine5.0L V84.6L V84.6L V84.6L V84.6L V85.0L V84.6L V84.6L V84.6L V85.0L V85.0L V85.0L V85.7L V85.7L V84.6L V85.7L V85.7L V84.6L V85.7L V84.6L V85.7L V84.6L V85.7L V85.7L V84.6L V85.7L V84.6L V84.6L V85.7L V85.7L V85.7L V85.7L V8
Note--------------------------------

How to Install?

Checks Before Installation

  • Identify whether the problem comes from the tensioner, a stretched chain, damaged guides or incorrect camshaft timing.
  • Check the engine oil condition, oil pressure, oil passages and check valves. Blocked oil passages can quickly damage new timing components.
  • Confirm the kit contains the correct chains, tensioners, guides, sprockets, seals and timing-cover gasket or RTV.
  • Determine whether any sprocket is integrated with the camshaft and must be replaced as an assembly.
  • Set the engine to TDC before disassembly.

Installation Steps

  • Step-1: Mark the relationship between the chain and sprockets, using the colored chain links as references.
  • Step-2: Release the spring-loaded tensioner slowly and secure the camshafts immediately after removing the chain.
  • Step-3: Inspect every plastic guide and tensioner shoe for cracks. Do not force them into position.
  • Step-4: Clean the timing-cover surface with a plastic scraper. Do not use grinding wheels or wire brushes.
  • Step-5: Apply RTV only where specified and keep sealant away from oil passages.
  • Step-6: Pre-fill the hydraulic tensioner with clean engine oil before installation to prevent dry running at startup.
  • Step-7: Replace TTY crankshaft bolts and tighten them using the specified torque-plus-angle procedure.

After Installation

  • At first startup, immediately check the oil-pressure warning light and listen for continuous chain rattling during the first 30 seconds.
  • Replace the engine oil and oil filter after installation to remove metal particles and sealant residue.
  • Check the timing cover for leaks within the first 100 miles.
  • Scan for codes and perform camshaft/crankshaft position relearning when required.
  • Follow a 5,000–7,500-mile oil-change interval, as clean oil is critical to timing-chain life.

Product Description

11

Reviews

4.5/5

Based on 2 reviews

550%
450%
30%
20%
10%

Nancy_FirstCar_552

05/04/2026

Arrived quickly and the box was in perfect condition. Customer service was great when I called to confirm compatibility. Really happy with the whole process.

SarahDrives_823

11/17/2025

The parts look great, all shiny and new. Seems like a really good deal for what you get. Installation was a bit more involved than I thought, and I had to use some of my own tools.
