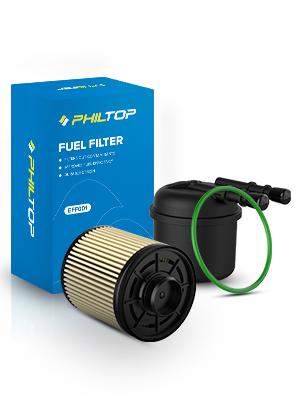

The three-layer filter material can filter harmful particles and water in the engine fuel gas system to protect oil pump nozzles, cylinder liners, piston rings, etc., reduce wear and tear, avoid clogging, ensure stable engine operation.
Compatible model and year list:
2011-2016 F-250 Super Duty Pickup
2011-2016 F-350 Super Duty Pickup
2011-2016 F-450 Super Duty Pickup
2014-2016 F-350 Super Duty Chaise
2011-2016 F-450 Super Duty Chaise
2011-2016 F-550 Super Duty Chaise
If the following situations occur, please check or replace the fuel filter:
| | | |
|---|---|---|

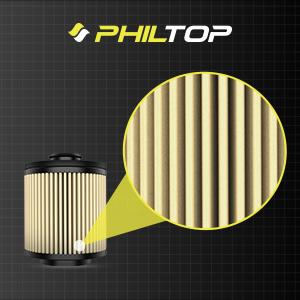

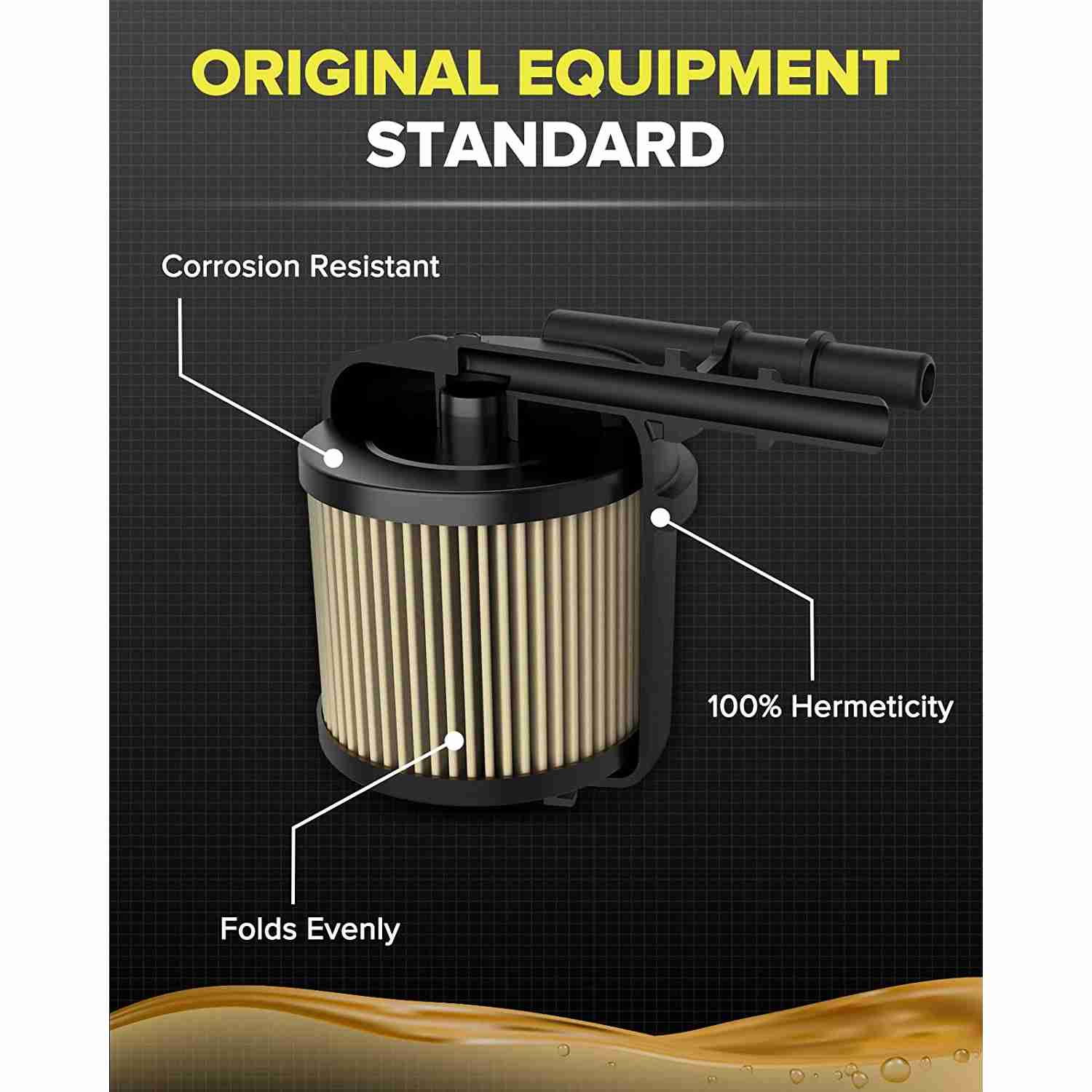

Three-Layer DesignThe 3-layer filter provides up to 99% filterability It helps to prevent metal dust, moisture, and organic matter from entering the engine. | Synthetic Fiber Filter PaperPHILTOP fuel filter paper has better stiffness and can withstand temperatures up to 135 degrees. Evenly folds filter paper has 200% dust capacity and 150% longer service life. | 100% Quality ControlPHILTOP filters are subject to strict quality checks before leaving the factory. While ensuring that the product is sealed well, the surface is coated with plastic spray powder for good corrosion resistance. |

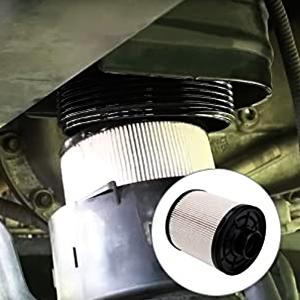

1. Remove the sensor harness.

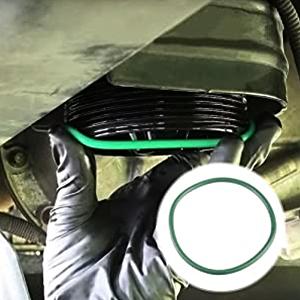

2. Remove filter housing with a 1 1/4" socket or 32mm socket or use a strap wrench. Recommended using a strap wrench so that you don't shear the plastic housing.
3. Turn 3 times (not to drench yourself in fuel before opening the drain valve), then loosen the yellow drain valve to drain water into a suitable container.
4. Remember to lubricate the new O-ring and reinstall everything

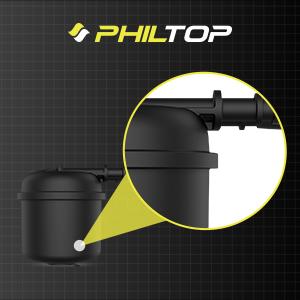

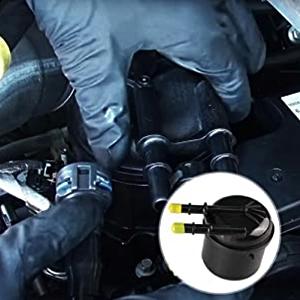

1. Remove the fuel line keepers on both lines by pushing down the yellow tabs and the keeper will go down out of the way.
2. The other fuel line will come off by squeezing both white tabs inward then remove.
3. Loosen the 7mm nut and use a 7mm socket wrench to loosen the clamp around the filter, twist to the right until it stops then pull upwards, and install following the same steps in reverse order.
1. You must cycle the key to the on position 6 times waiting approx 30 seconds each time before trying to start the truck.
2. Turn the ignition key to on, but do not start. Wait 30 seconds until the fuel pump times out, then turn the key back to off. Repeat 6 times.
3. You will probably notice strange noises coming from the fuel system until it is mostly full.
